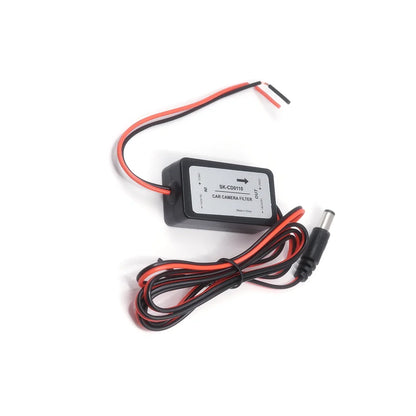

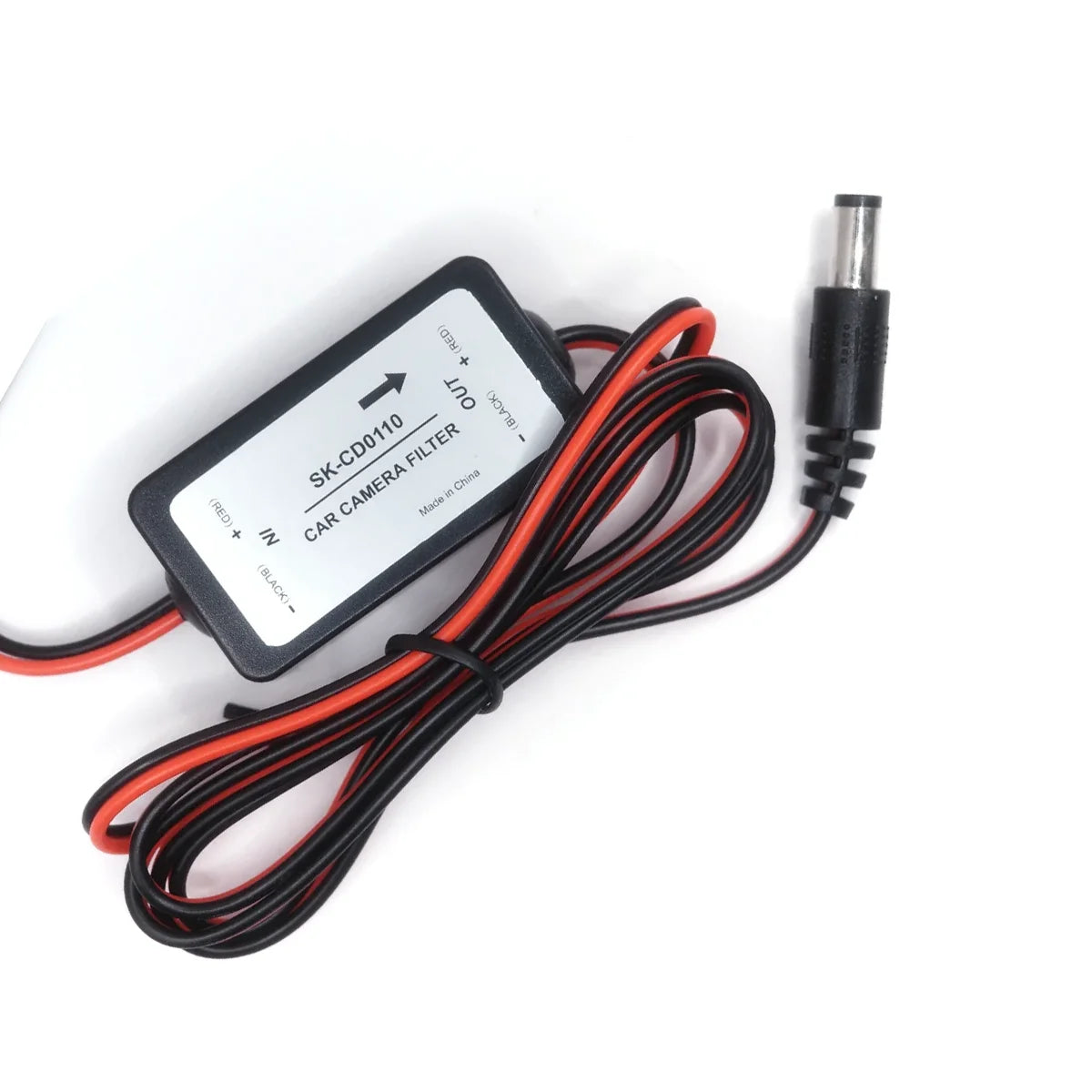

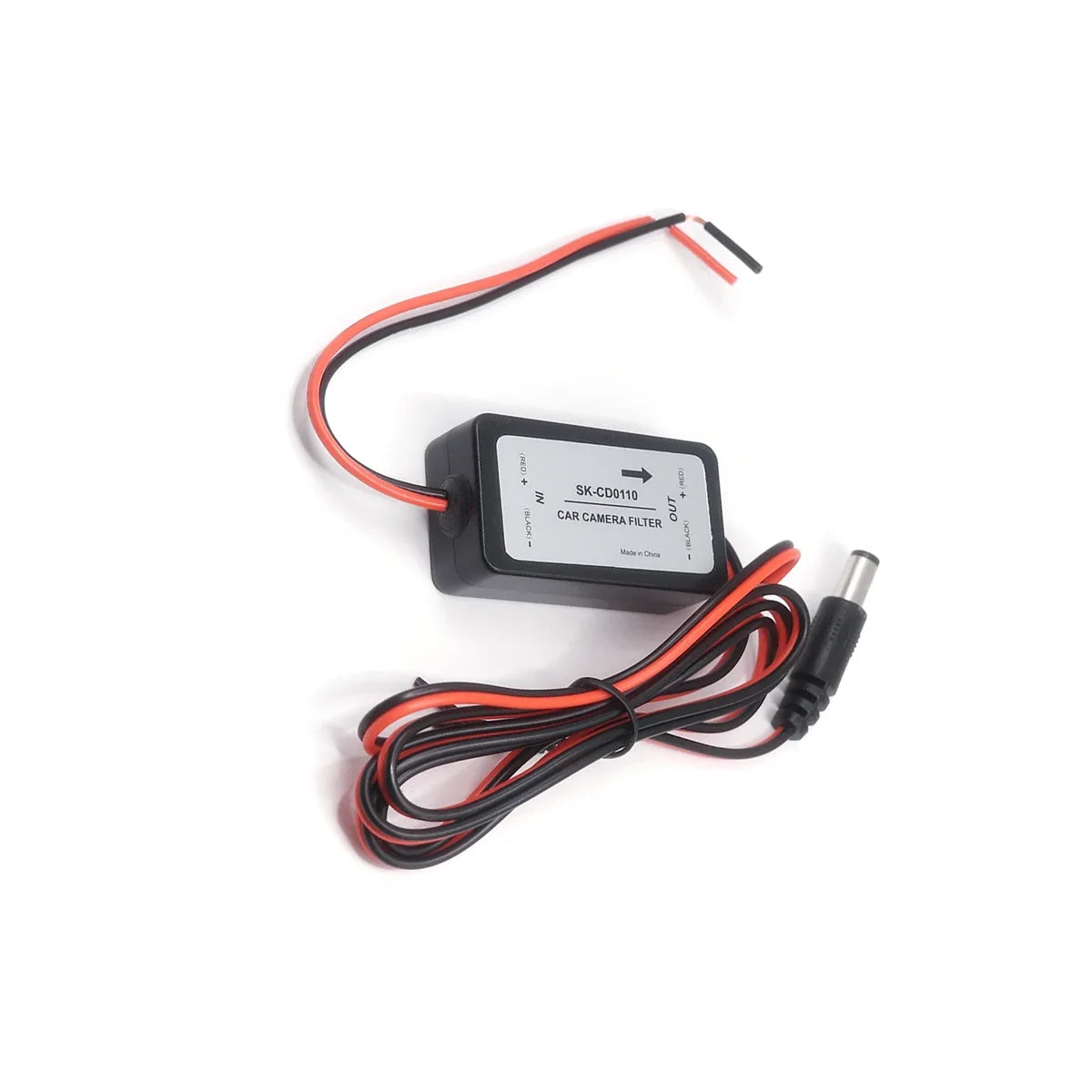

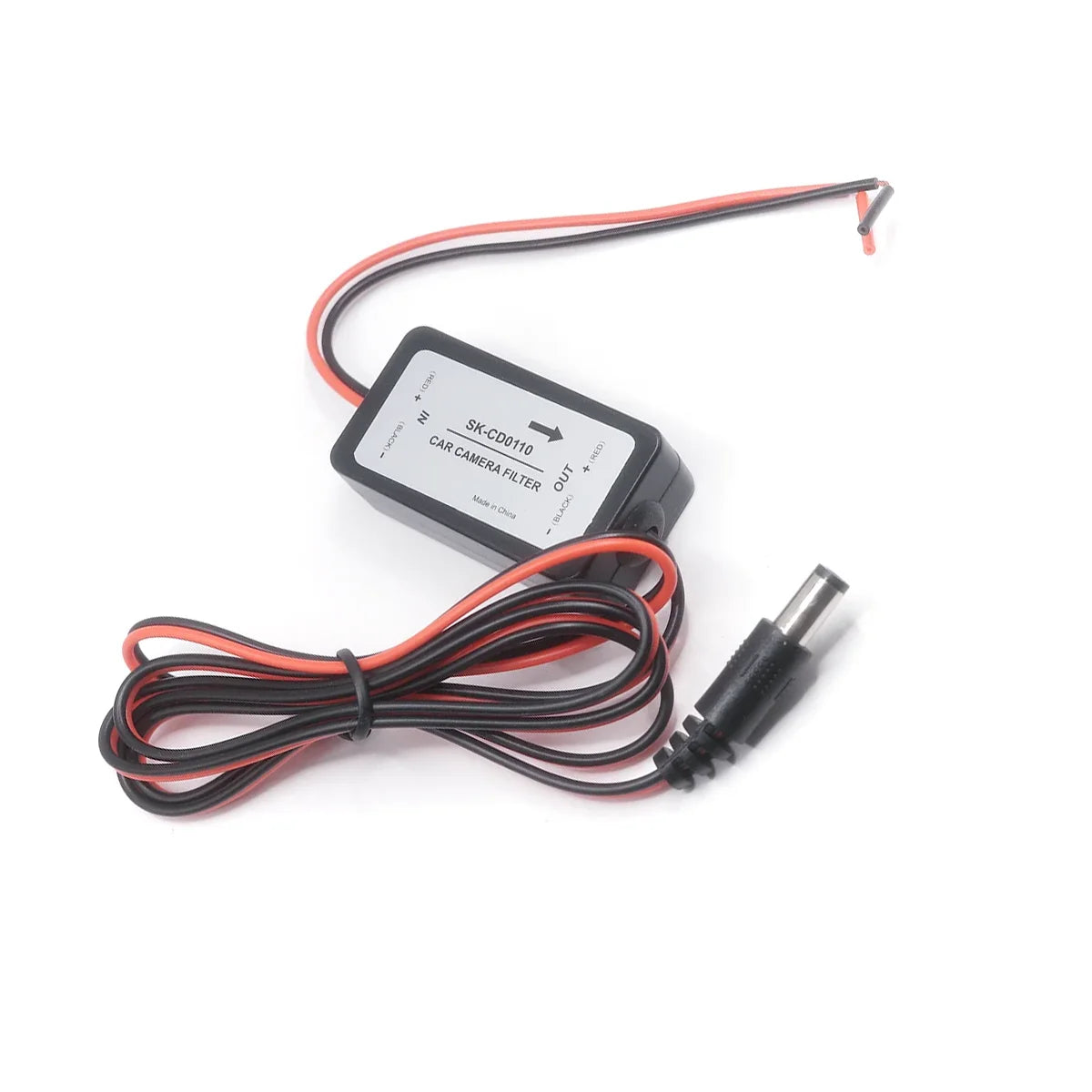

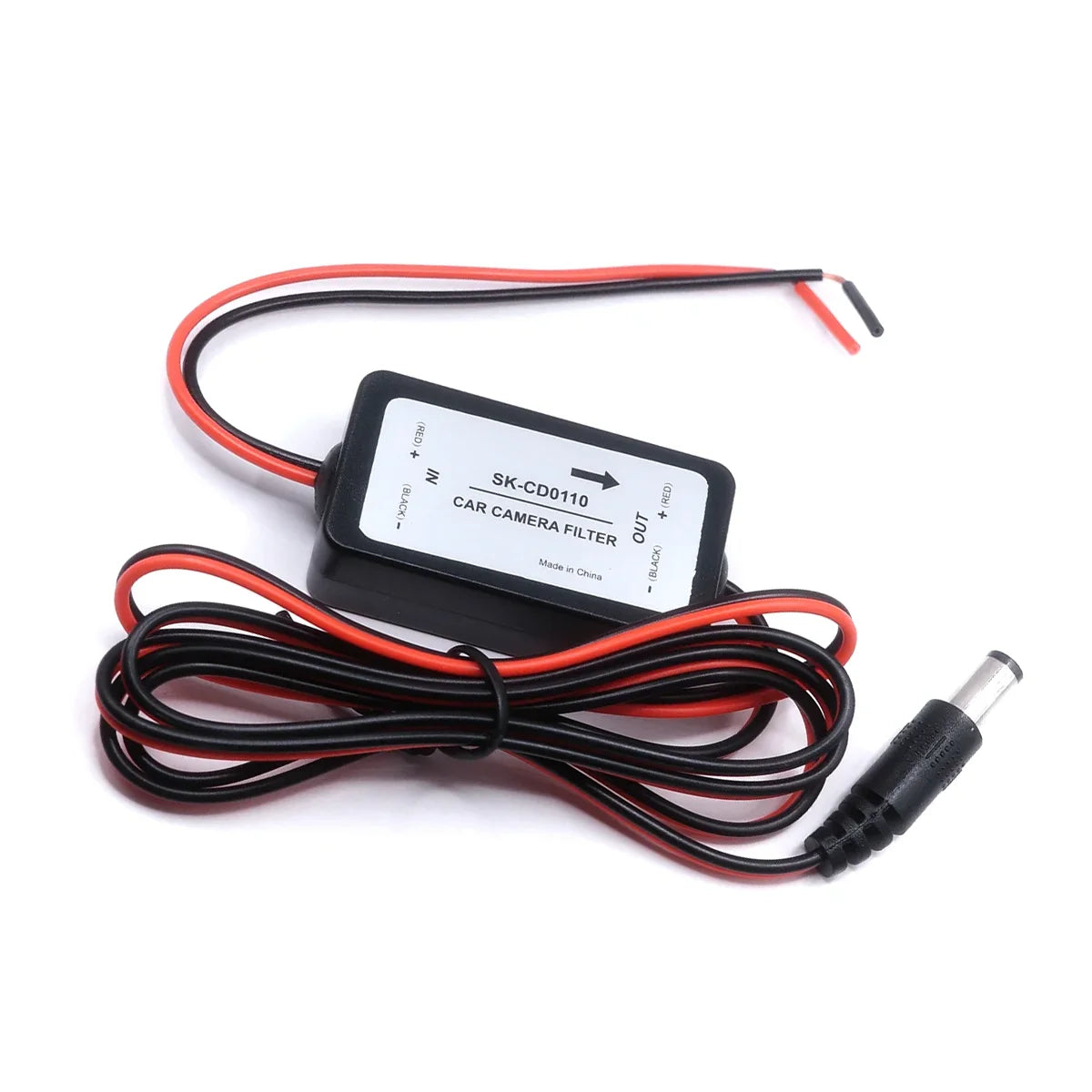

12V Power Filters Reversing Rectifier Ballasts Solve Rear View Camera Ripple Splash Screen Interference Relay Filter

Car Rear View Rectifier, 12V DC Power Relay Capacitor Filter Connector for Backup Auto Car Camera Filter

Some models of German cars and American cars will output voltage interference after the engine is started. The power supply to the reversing light is not pure DC power supply, but a pulse signal is superimposed on top oscilloscope can be used to test if the conditions will it found a similar squarewave signal. Camera power supply line directly on the reversing light, because the working voltage is very unstable cause the camera does not work properly, the video signal output is also not normal, so the host can see there is a severe interference, jitter, or not to switch reversing screen.

Features:

【Check Compatibility First】
-- The 12v Power Relay Filter Rectifier can used to supply the stabilized 12V DC power to the rear camera. Perfect Car Rectifier for Germany/American Car Series.

【Car Rear View Rectifier】
Car Rear View Rectifier can effectively to supply the stabilized 12V DC power to your rear camera, help to solve the issue of the "screen cyclowarp" or "black screen" when using a rear camera reversing. Professional Camera Rectifier with high characteristic and stable performance

【Professional Quality】-- Relay Filter Rectifier is made of premium precision component with plastic shell, sturdy construction, waterproof design, good abrasion resistant, high quality for long service life

【Easy to Use】
-- Easy to install, no any modification required. Just read the wire setup-- Input Red Wire: Reversing Light Positive Pole/ Input Black Wire: Reversing Light Negative Pole /Output Red Wire: Camera Positive Pole /Output Black Wire: Camera Negative Pole

Note:

Please do not purchase if your car is non-German or American Car Series, because there is different currents for different car series, non-pulsed signal interference, use this filter line is invalid!

Wire Setup:

Input Red Wire: Reversing Light Positive Pole
Input Black Wire: Reversing Light Negative Pole
Output Red Wire: Camera Positive Pole
Output Black Wire: Camera Negative Pole

Specifications:

Condition: 100% Brand New
Material: Plastic
Color: Black
Size: 48 * 26 * 15mm/1.9 * 1.0 * 0.6inch
Package Weight: approx.17g
Fitment: for Germany/American Car Series

Package Included:

1 * Car Rear View Rectifier

Warranty and Return:

All our items are tested 4 times to ensure working properly before shipping and come with a 12-month Manufacture Warranty.
If this item has any problem when arriving, please feel free to contact us and please note keep it in original condition.
