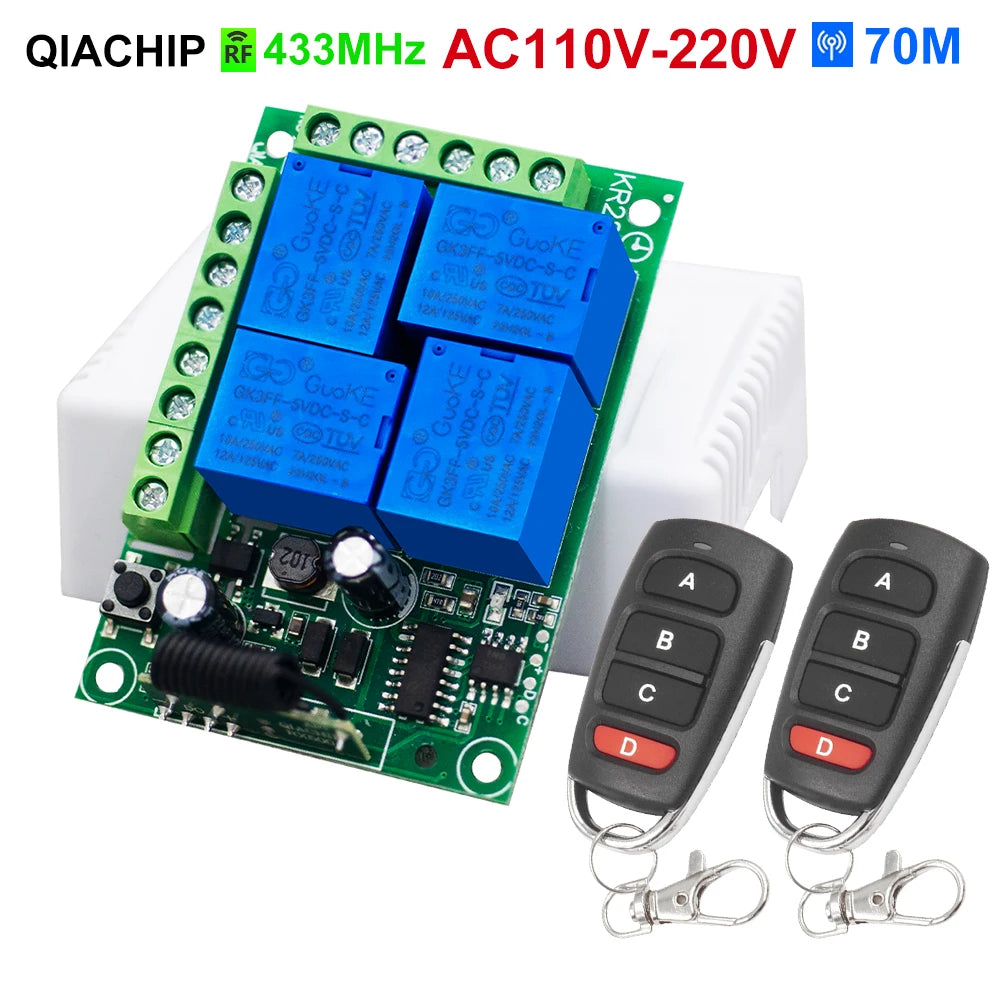

433Mhz Universal Wireless Remote Control AC110V 220V Relay 4CH Module Receiver 4B Transmitter For Garage Door Gate Motor Light

★ ★ ★ ★ ☆ 4.9 / 5 (374 Reviews)
$43.99
$43.99 $55.99
21% OFF Sold out
5pcs Remote
5pcs Remote
2 RC and 1 Receiver
2 RC and 1 Receiver
1 RC and 1 Receiver
1 RC and 1 Receiver
5pcs Remote 1
5pcs Remote 1
1pcs Receiver
1pcs Receiver
10pcs Receiver
10pcs Receiver
10pcs Receiver 1
10pcs Receiver 1

433Mhz Universal Wireless Remote Control AC110V 220V Relay 4CH Module Receiver 4B Transmitter For Garage Door Gate Motor Light

$43.99
$43.99 $55.99
21% OFF Sold out
Yazı Döngüsü by 211medya.com
🚀 Over 150 items sold in the last 3 days!!
🧡 Customer favorite! With an average rating of 4.8 stars!
🛒 In the carts of 205 people, buy before it’s gone!
👀 8.3K people viewed in the last 24 hours!
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay

 Free Standard Shipping Over 59.00 USD+

Free shipping on all items in your cart of US$59 and above! At BeautyFashion, we work diligently to deliver your orders to you as quickly and securely as possible. Once your order is delivered to the courier, your tracking number will be automatically sent to your email address. With this information, you can easily track the status of your shipment in real time via the "Order Tracking" page on our website. While you enjoy the excitement of your order, we deliver it safely to you. Free shipping on all items in your cart of US$59 and above! At BeautyFashion, we work diligently to deliver your orders to you as quickly and securely as possible. After your order is delivered to the courier, your tracking number will be automatically sent to your email address. With this information, you can easily track the status of your shipment in real time via the "Order Tracking" page on our website. While you enjoy the excitement of your order, we deliver it safely to you.

 Easy Returns within 30 days

-Items in the following categories cannot be exchanged or returned: Bikinis, swimsuits, lingerie, tights, hosiery, and accessories (excluding belts and bags), evening gowns, dresses, and corsets (our evening gowns are custom-made and therefore cannot be returned). We take the health and safety of our customers seriously, and intimate items cannot be resold after being opened or used.

🎁 Special End-of-Season Multi-Buy DISCOUNT!

  • Extra 10% OFF on orders over 200 USD
  • Extra 15% OFF on orders over 400 USD
  • Extra 20% OFF on orders over 600 USD
  • 24/7 Customer Service
  • Easy Return
  • Fast Shipping



For more good products, please enter the store to browse

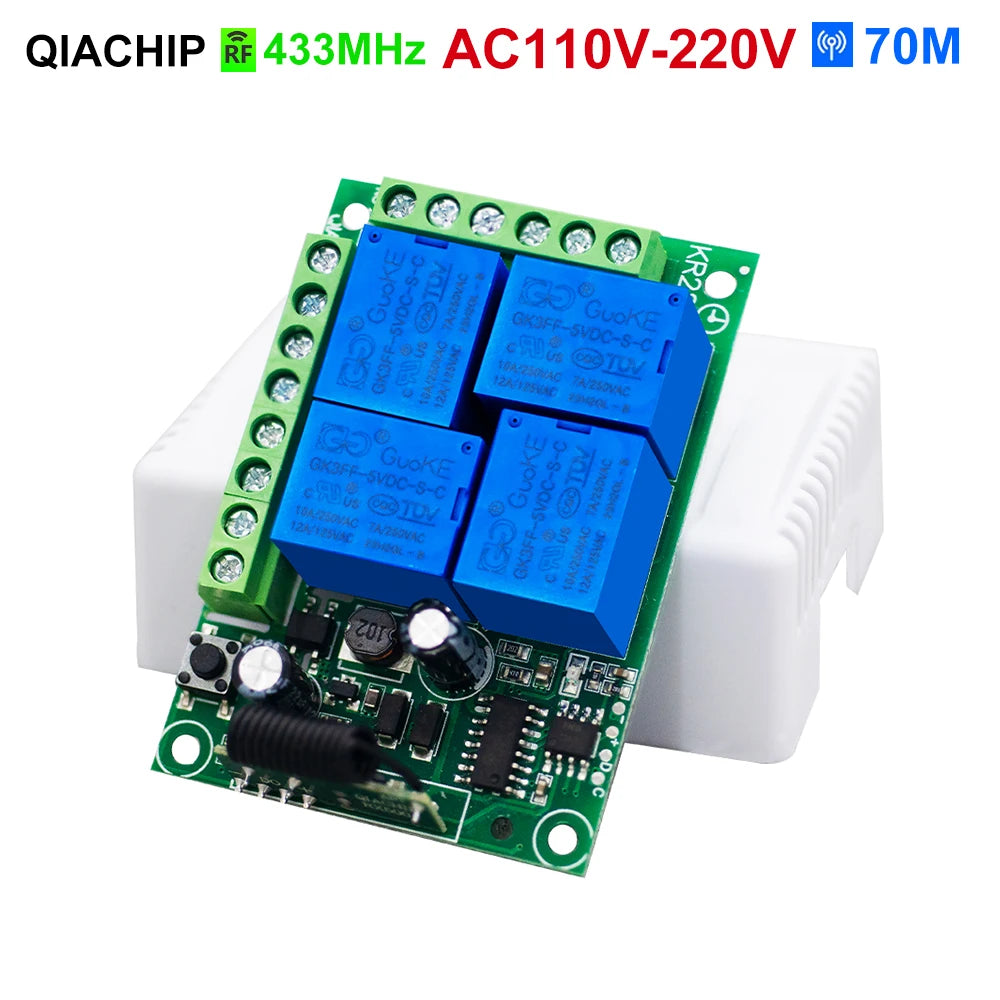

433Mhz Universal Wireless Remote Control AC110V 220V Relay 4CH Module Receiver 4B Transmitter For Garage Door Gate Motor Light

Model Number:KR2204-4
Working Voltage: AC 90V-250V 50/60HZ
RF Working Mode: ASK Superheterodyne Reception.
Modulation Mode: ASK.
Working Mode: Momentary/Toggle/Latched, etc.
Matching Mode: Intelligent Learning Code.
Quiescent Current: 5mA.
RF Frequency: 433MHz.
Receiving Sensitivity: >104dbm.
Remote Control Range: >70m (Free Space).
Output Mode: Dry Contact/Voltage Output.
Wired Connection Way: Fixed Wiring Pillar.
Color: Green (PCB Board), White (Outside Shell).
Package Size:7.5 * 5.5 * 3.0cm / 2.95 * 2.16 * 1.18in.
Package Weight: 80g/2.82oz.

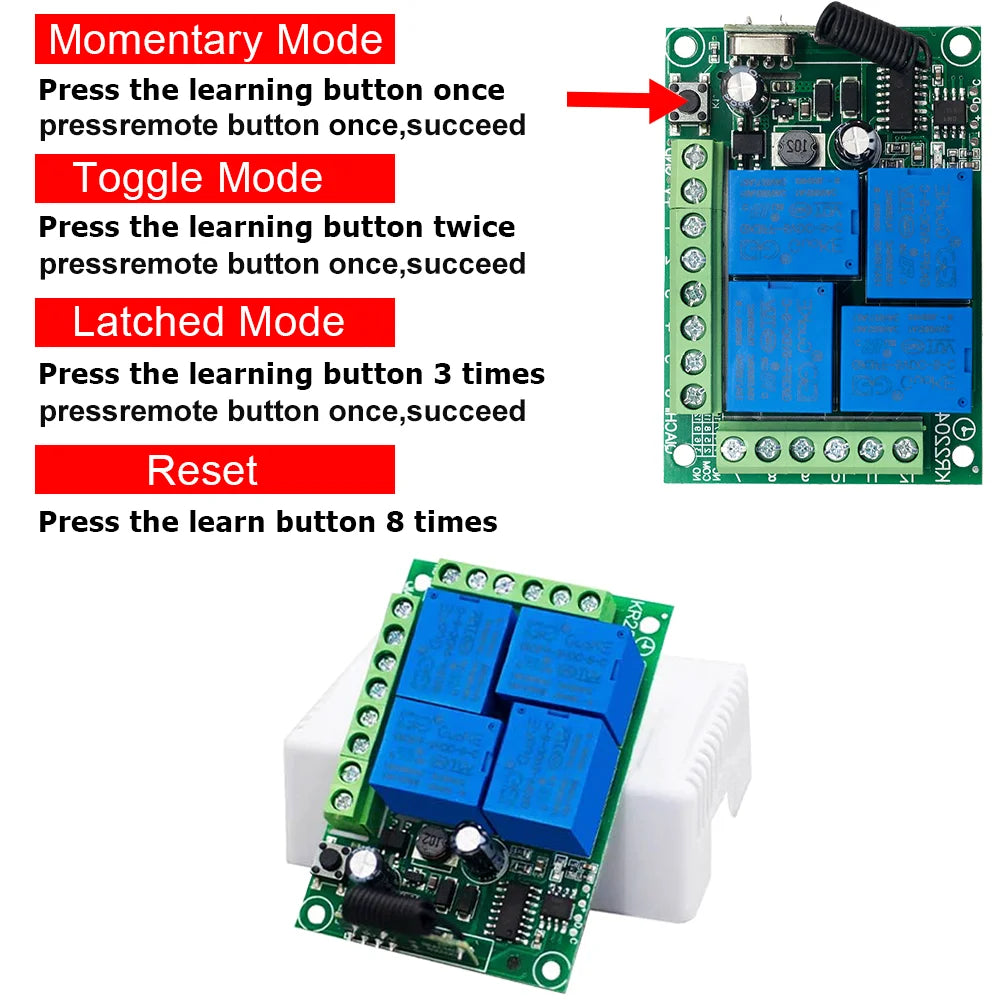

Press the learning button on the Receiver Switch Module board 8 times , the existing data are deleted successfully.
After deleted the data, all the remote control cannot work any more.

Operating instructions:

1. Jogging function: Press the control board pairing button once, and the LED indicator light will flash once. After the LED indicator light is on, press the remote control button that needs pairing, and the control board LED indicator light will flash three times continuously to successfully pair the codes.

2. Self locking function: Press the control board pairing button twice in a row, and the LED indicator light will flash twice. After the LED indicator light is on, press the remote control button that needs pairing, and the control board LED indicator light will flash three times in a row, successfully pairing.

3. Interlocking function: Press the control board code matching button three times in a row, and the LED indicator light will flash three times. After the LED indicator light is on, press the remote control button that needs to match the code, and the control board LED indicator light will flash three times in a row to successfully match the code.

4. Two way jog and two way self-locking: Press the control board code matching button 4 times continuously, and the LED indicator light will flash 4 times. After the LED indicator light is on, press the remote control button that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.

5. Two way jog and two way interlock: Press the control board code matching button 5 times continuously, and the LED indicator light will flash 5 times. After the LED indicator light is on, press the remote control button that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.

6. Two way self-locking and two way interlocking: Press the control board code matching button 6 times continuously, and the LED indicator light will flash 6 times. After the LED indicator light is on, press the remote control button that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.

7. Two way interlocking and two way interlocking: Press the control board code matching button 7 times continuously, and the LED indicator light will flash 7 times. After the LED indicator light is on, press the remote control button that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.

8. Code clearing function: Press the control board's code matching button 8 times in a row, and the LED indicator light will flash 8 times. At this time, the LED indicator light will automatically flash 8 times in a row, completing the code clearing and clearing all previously learned remote control key codes.

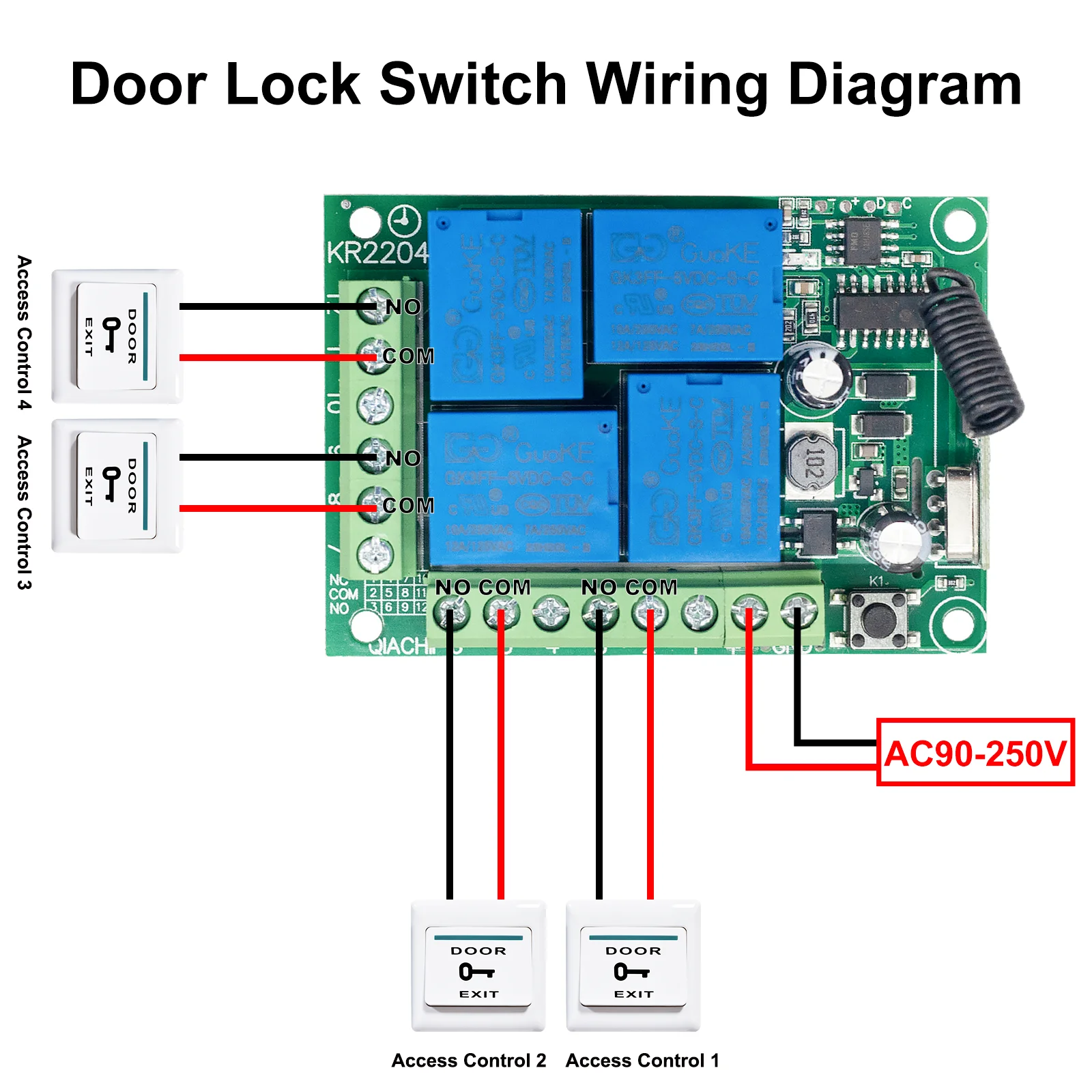

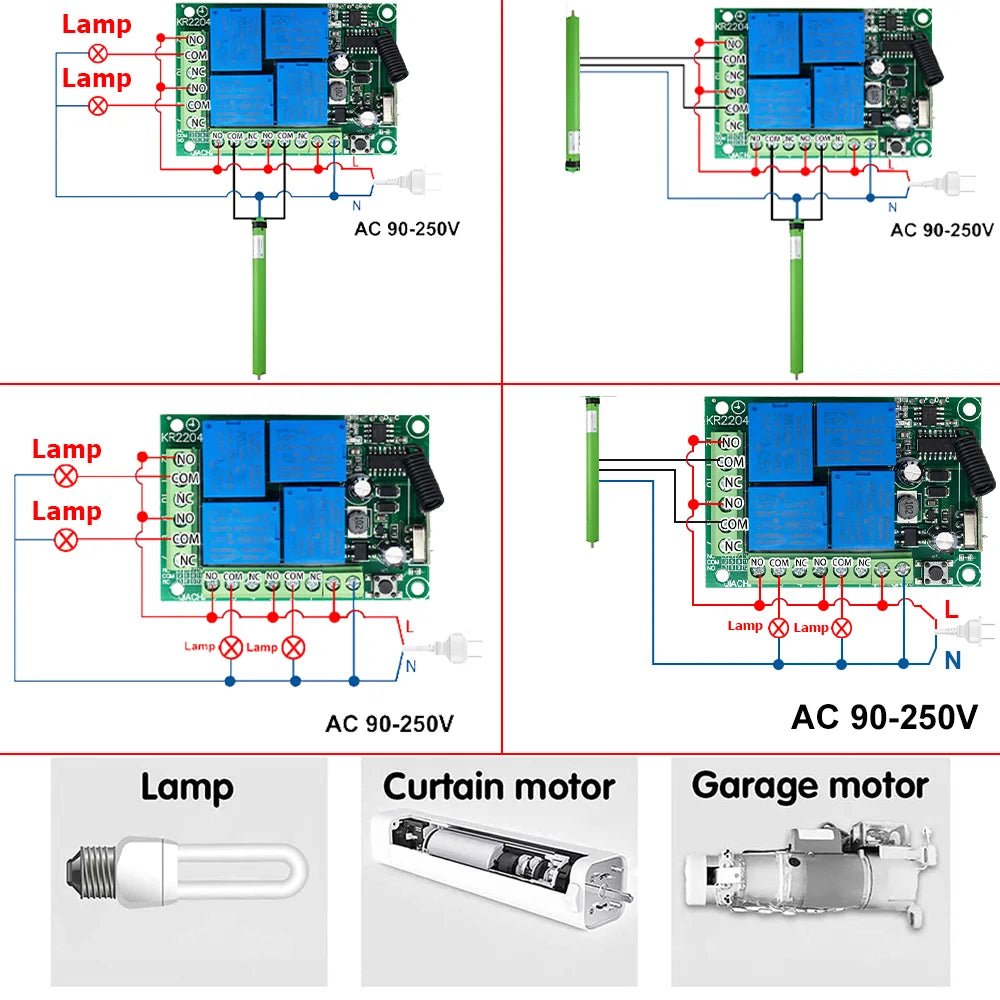

Connection access control diagram:
