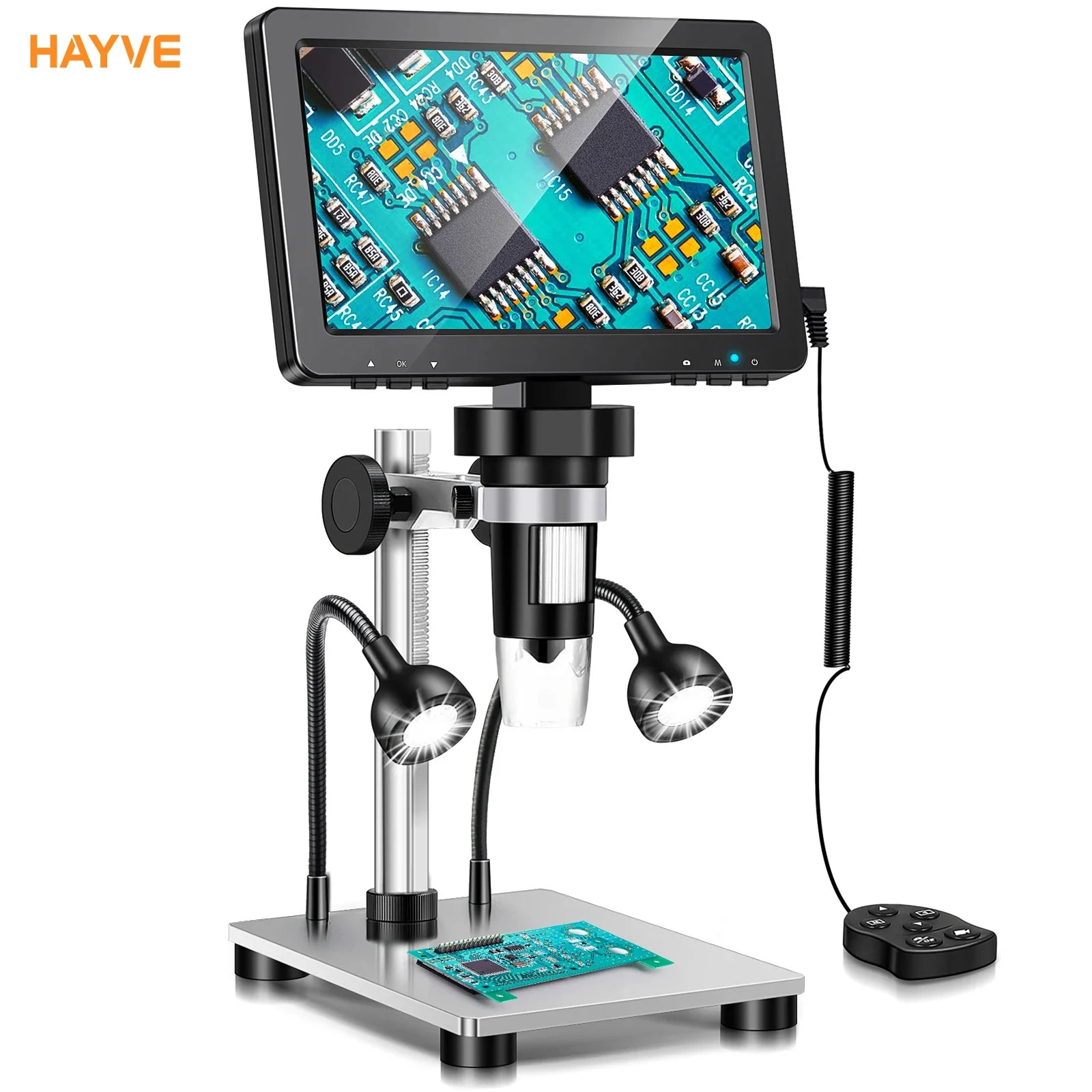

Hayve 7‘’ Digital Microscope 1200X Zoom 12MP HD Electronic Microscopes Camera Magnifier for Soldering Phone Repair Microscope

Hayve 7‘’ Digital Microscope 1200X Zoom 12MP HD Electronic Microscopes Camera Magnifier for Soldering Phone Repair Microscope

Product name: DM9

Video maximum pixel: 1080FHD

Lens optic size: 1/4”

Picture resolution: 12M,10M,8M,5M,3M

Video resolution: 1080FHD,1080P,720P

Video format: avi

Focus mode: manual

Picture format: JPG

Magnification times: 1200X

Digital zoom: support

Illuminant: 8 LED lights (brightness adjustable)

Focusing range: 10~40mm（can watch distant view）

PC resolution and image transfer rate: 1280*720/30fps

White balance: automatic

Exposure: automatic

PC operating system: Windows Xp,win7,win8.1,win10,Mac OS x 10.5 or higher

Supported language: 12 languages

Lens construction: 2G+IR

Aperture: F4.5

Lens angle: 16°

Interface and Signal Transmission Mode: Micro/usb1.1

Operating temperature: -20°C ~ +60°C

Operating humidity: 30%~85%RH

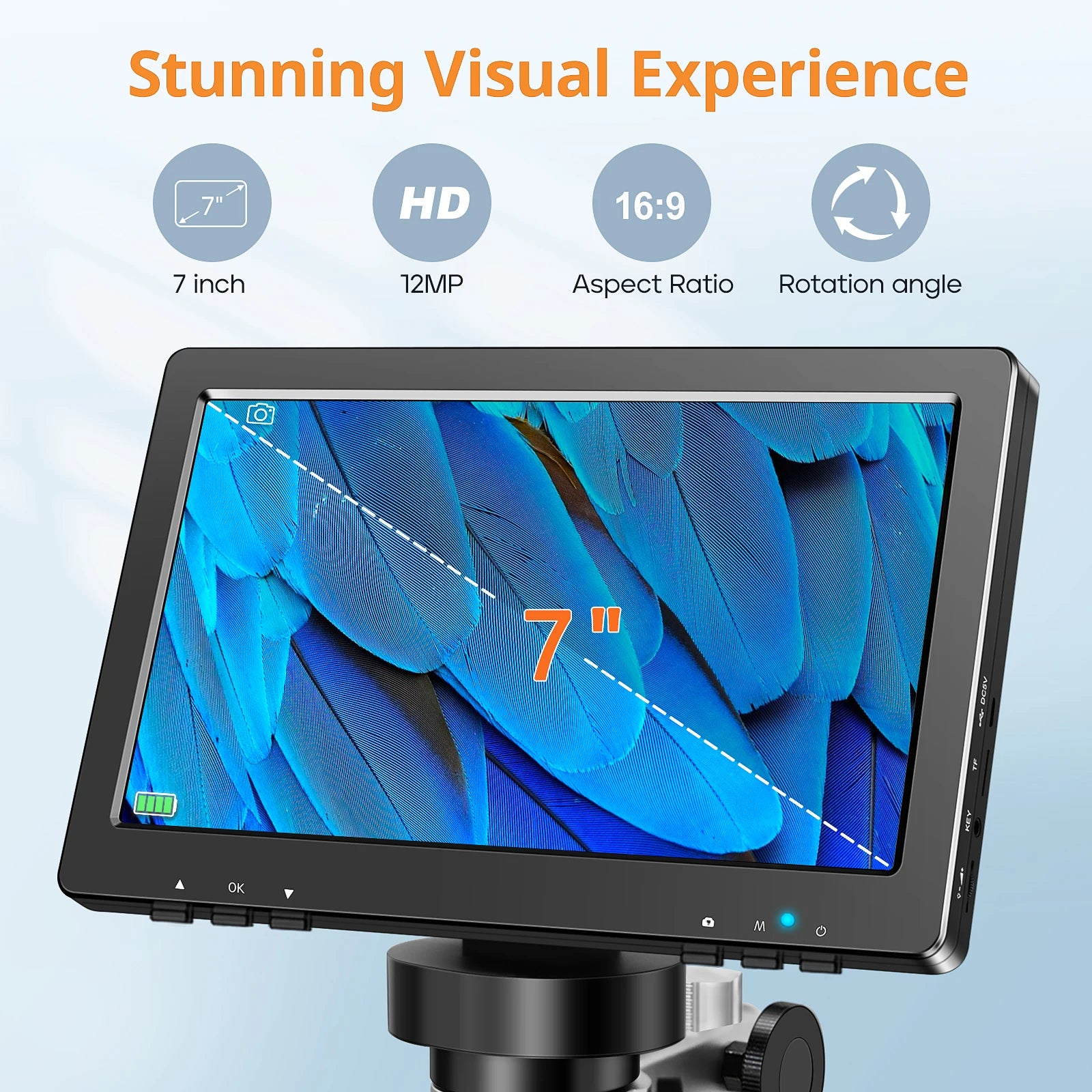

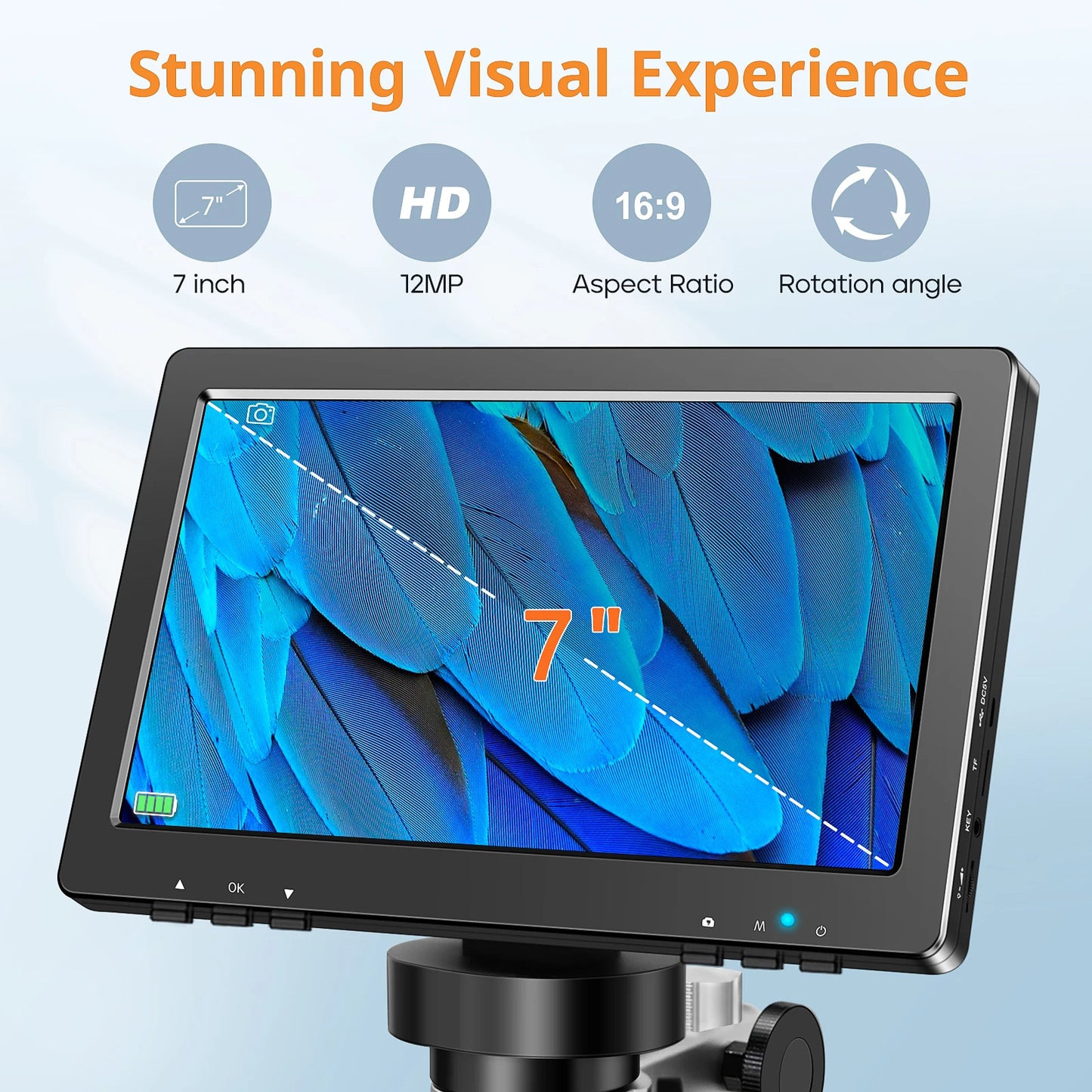

7 INCH LARGELCD SCREEN

Hayve 7 inches LCD microscope screen with a 12MP high-definition camera which provides a broad field of view for easy viewing. The large screen allows you to quickly adjust the image and instantly view,Large screen with adjustable angle will give you a better visual experience.

HOOK UP TO PC FOR LARGER VIEW

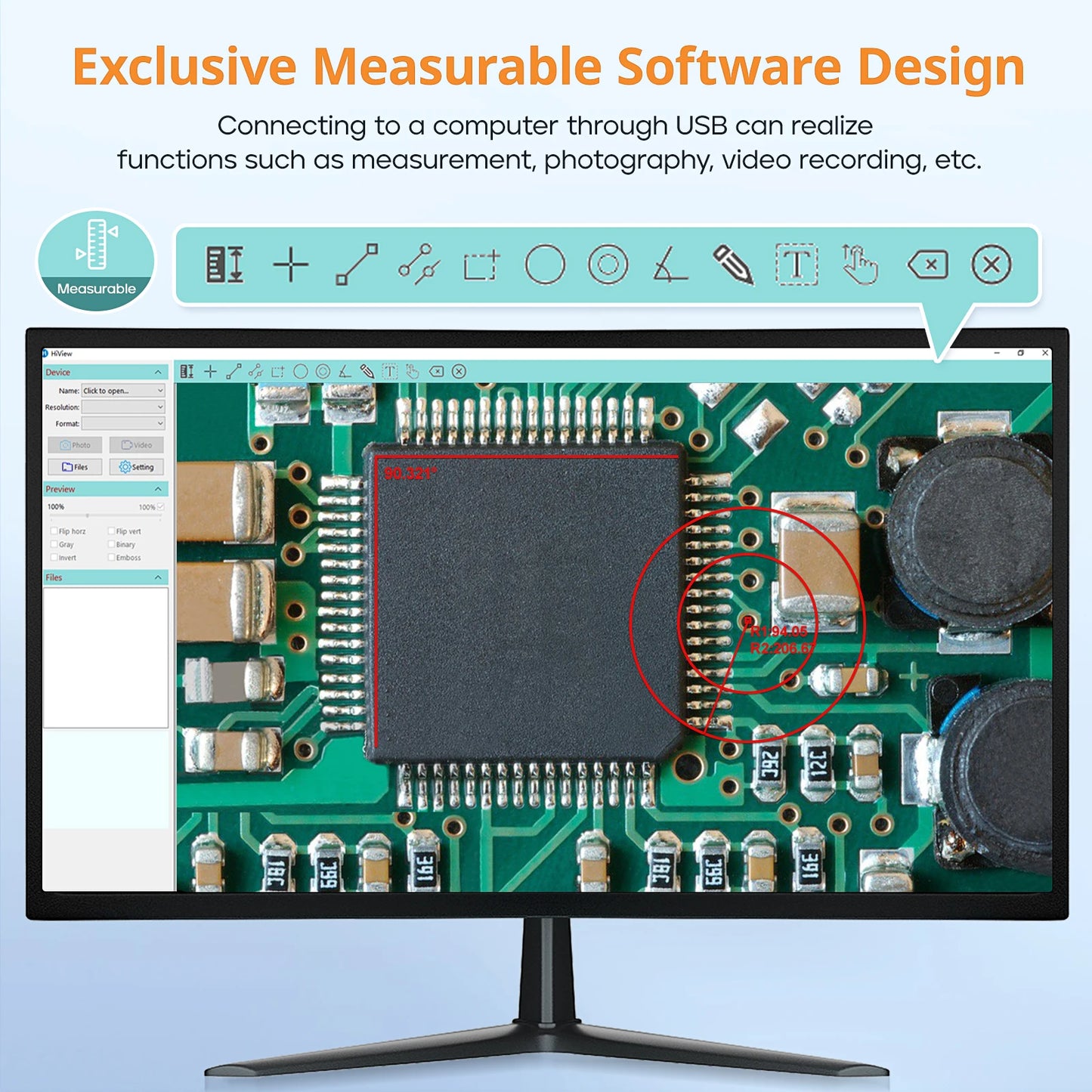

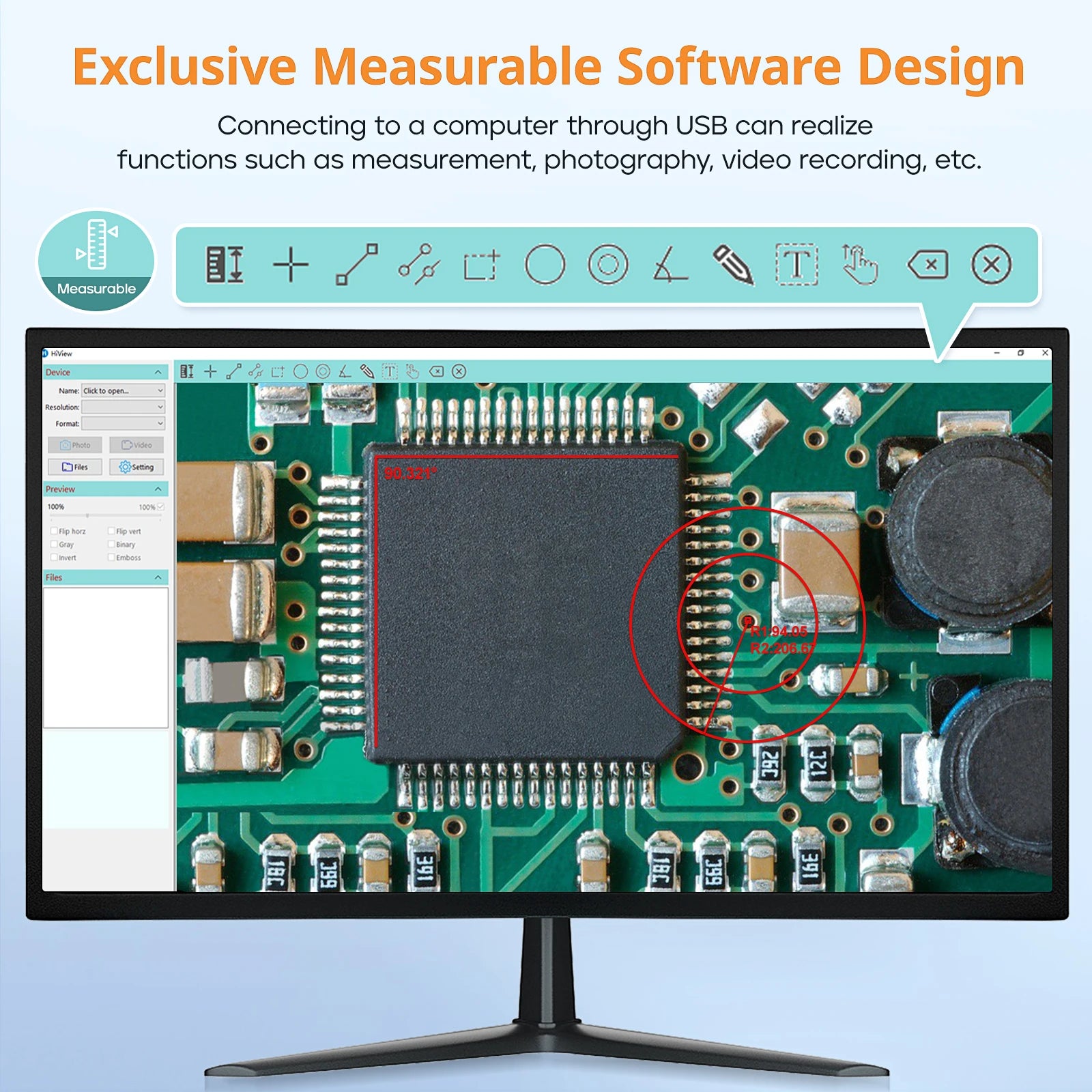

Connect Hayve coin microscope to the PC/laptop(Windows and Mac OS Compatible) to observe in larger scale and facilitate data sharing and analysis.Just plug and play,no need to download extra software,run the default software "Windows Camera" for Windows 10 and "Photo Booth" for iMac/MacBook.

PC Connection Operations

• Set PC Camera on microscope: Menu > set up > USB > PC Camera

• Connect the microscope to PC and run Windows camera

• Zoom in/out and focus

10-1200X DIGITAL MAGNIFICATION

Hayve microscope for adults provides 10-1200X continuous magnification，so you can see the tiniest view, such as error coins, and burned components on circuit boards, bring you a amazing visual experience！2 Extra Metal Goose Lights

The auxiliary lamp of the bracket is no longer attached to the usb microscope, but can be powered independently, which makes the structure of the microscope simpler, when there is no electricity, it can be charged with a type-c cable. This 2 extra lights are flexible enough to illuminate from different angles to keep all areas bright, illumination zone can reach 90%.TAKE PHOTO AND RECORD VIDEO

Hayve digital microscope can take 12MP (4023*3024) photos, record 1080FHD 1920*1080 30fps video.There are 2 ways for taking photo and video,press the button on the host or use the wired remote,we suggest use the wired remote, which can reduce the camera shake and take clearer photos and videos.

What's in the box?

1. Hayve LCD Microscope * 1

2. Aluminum Base * 1

3. Wired Remote * 1

4. Aluminum Holder * 1

5. USB Cable * 1

6. User Manual * 1

7. Straightedge * 1

8. Light Barrier * 1 (Take off the lens protector the barrier on the lens)
