Solar Lights Outdoor Garden LED Refletor Garden Buildings Sunlight IP67 Waterproof Lamp Spotlight Emergency Lighting Wall Light

Feature:

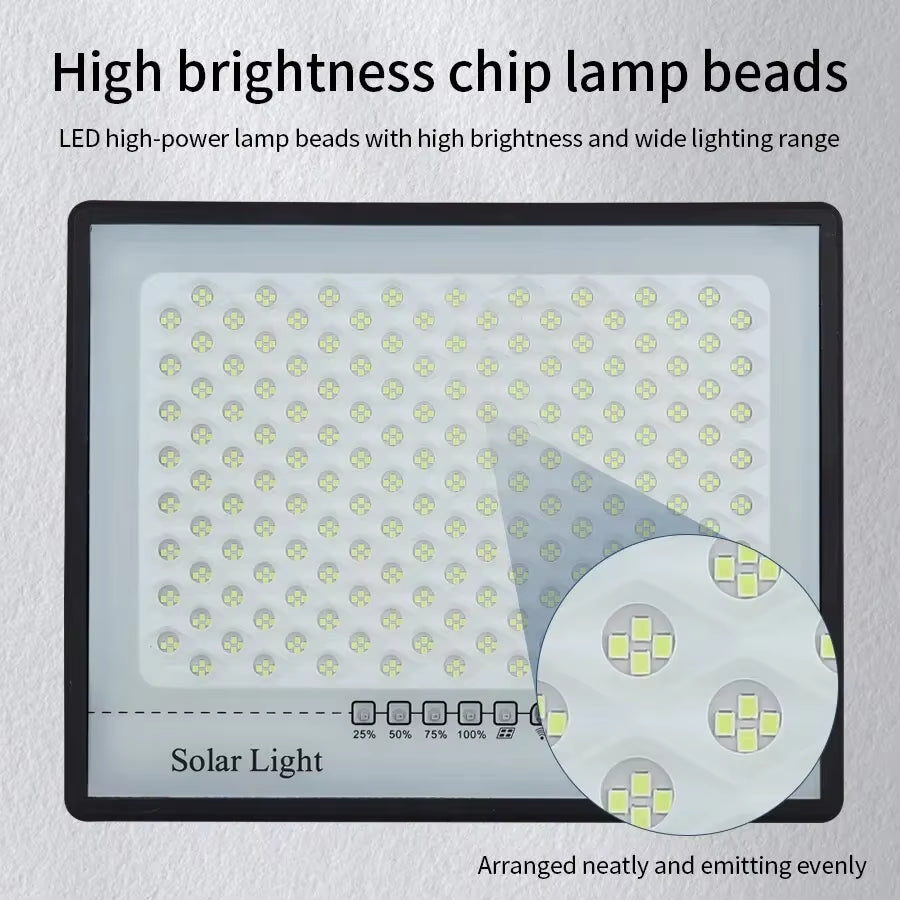

【New upgrade】 It is equipped with nanometer 4-in-1 nanometer lamp beads to meet the needs of brighter and wider area lighting. This solar lamp uses white light and can illuminate an area of 30 square meters.

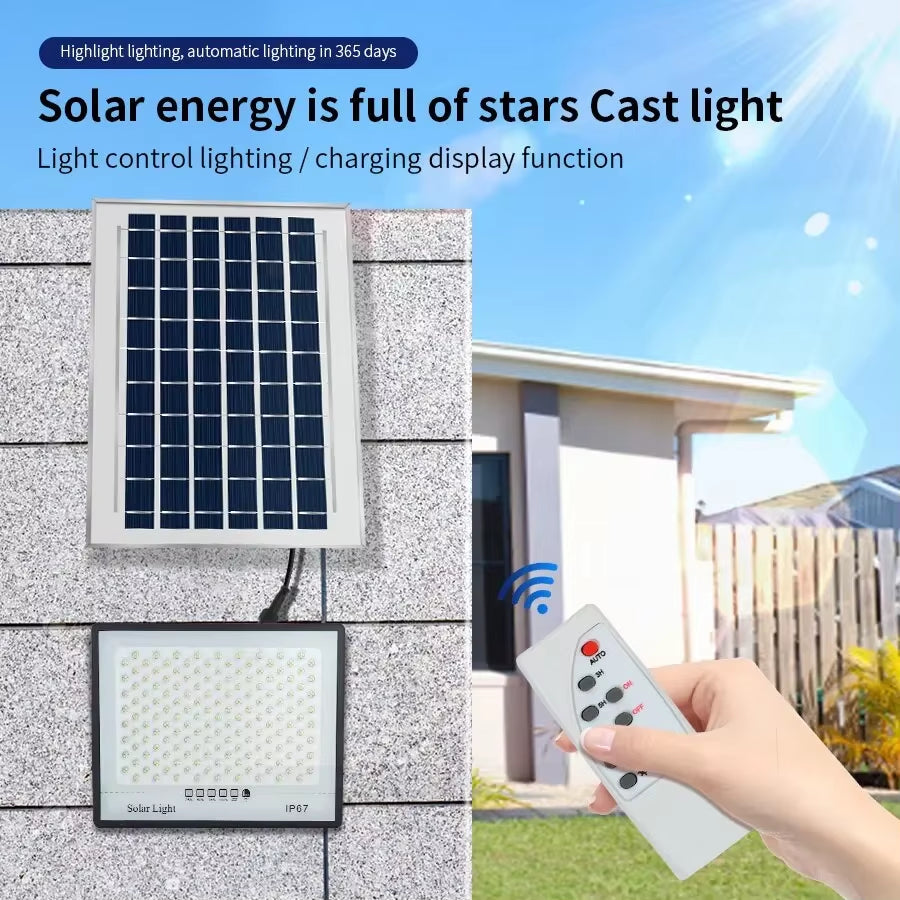

【Adjustable brightness and time】Our solar outdoor lamp is controlled by a remote controller. It is dimmable. Lighting time mode: (1) Automatic on/off, dusk to dawn, all-night lighting; (2) 3/5/8 hours lighting time countdown. You can make adjustments according to the situation and weather.

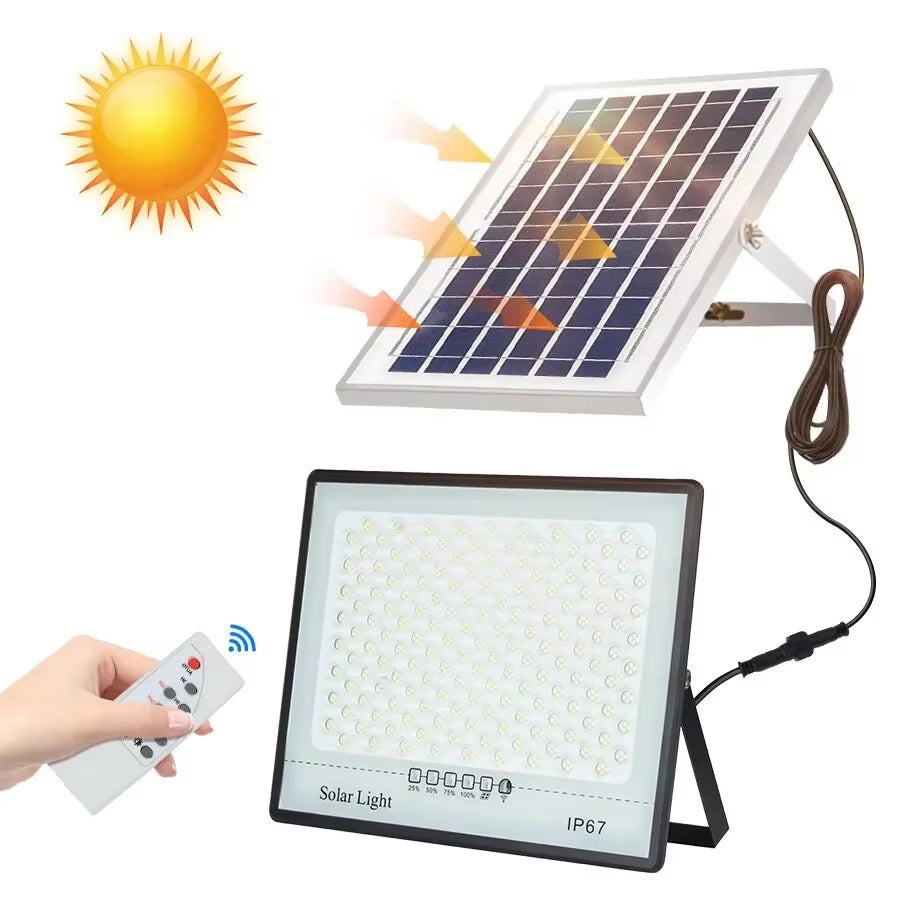

【Long working time】 The solar floodlight with remote control is equipped with high-quality solar panels to charge the built-in high-capacity lithium-ion battery, which can provide 8-10 hours of continuous lighting after a full day of charging.

【Waterproof and durable】 The outdoor waterproof grade of solar lamp is IP67, and it can be used normally in rainy days. This solar outdoor floodlight is made of metal aluminum

Package includes:

1 * 72LED/128LED/200LED solar lamp (optional)

1 * Remote control

4*Screw

2*Battery

1*Fixture

Specification:

72LED Parameter:

Protection class: IP67

Solar panel material: PVC

Battery capacity: 1000mAh

Battery: Lithium battery

Charging time: 6-8 hours

Working hours: 8-10 hours

Timing function: 3/5/8 hours

Number of Lamp Beads :72

Lamp size: 12cm * 13cm

Solar panel size: 15cm*13cm

Control method: remote control

128LED Parameter:

Protection class: IP67

Solar panel material: PVC

Battery capacity: 1200mAh

Battery: Lithium battery

Charging time: 6-8 hours

Working hours: 8-10 hours

Timing function: 3/5/8 hours

Number of Lamp Beads :128

Lamp size: 15cm * 19cm

Solar panel size: 22cm*13.5cm

Control method: remote control

200LED Parameter:

Protection class: IP67

Solar panel material: Aluminum

Battery capacity: 3600mAh

Battery: Lithium battery

Charging time: 6-8 hours

Working hours: 8-10 hours

Timing function: 3/5/8 hours

Number of Lamp Beads :128

Lamp size: 18cm * 24cm

Solar panel size: 18cm*27cm

Control method: remote control

If the lamp cannot illuminate after receiving the solar energy product for the first time, please follow the following steps
1. Please turn on the product switch first
2. Place the solar panel in a place with sufficient sunlight and charge for more than 8 hours
3. Keep the switch on and place the light fixture in a dark environment

Note: To verify the testing method, first connect the power cord between the lamp body and the photovoltaic panel. Place the photovoltaic panel in black - facing upwards and facing the sunlight. You can see the red charging indicator light next to the LED bead constantly flashing, indicating that the charging is normal. Place the photovoltaic panel facing down and facing away from the sunlight, and the LED beads will automatically light up, indicating that the control is normal and can be installed normally. The solar projection lamp has undergone charge and discharge testing and inspection in the factory before leaving the factory, and is charged with a certain amount of electricity. It is recommended that users use it the next day after installing the lamp to ensure that the battery can cycle charge and discharge more effectively.

Instructions for using solar projectors:

1. The solar project light is generally of split structure. First, connect the power line male and female plugs of the light body and the solar photovoltaic panel, tighten the waterproof rubber cap, test whether it works normally, and then install and fix it.

2. Select the installation position and adjust the installation angle (the installation angle of the solar panel faces the south direction, and try to install it in the position where the sun shines for a long time).

3. After installation, check whether the screws and fasteners of the lamp body are tightened, and whether the illumination angle of the lamp body and the sunlight angle of the photovoltaic panel are suitable.

4. Place the transmitter of the remote control in the direction of the lamp body, press the ON button of the remote control to turn on the lamp, and press the OFF button to turn off the lamp. The installation distance of the remote control is 3-10 meters.

Don't worry if you notice the light becoming weak! Under fully charged conditions, the light can basically turn on for 8-10 hours. Solar lights operate in a reduced power mode. If the brightness starts to decrease after three or four hours of illumination, this is not a problem with the light, but a normal working mode for solar lights.

Current reduction time: approximately 12 hours
Time control function=100% output in the first 3 minutes
--- 10 minute preset brightness 90%/10 minute preset brightness 80%
---1 hour 30 minutes preset brightness 70%/1 hour preset brightness 60%
---1 hour preset brightness 50%
---2 hours preset brightness of 40%
---6 hours preset brightness 30%
---Afterwards, the brightness decreased to 20% until dawn.
Corresponding full power illumination time: about 5 hours
Target application: occasions with sufficient battery power

Installation steps:

1. Select a suitable location for punching

2. Insert the screw into the hole

3. Fix the body of the lamp properly

4. Plug in the connection cable between the solar panel and the lamp
