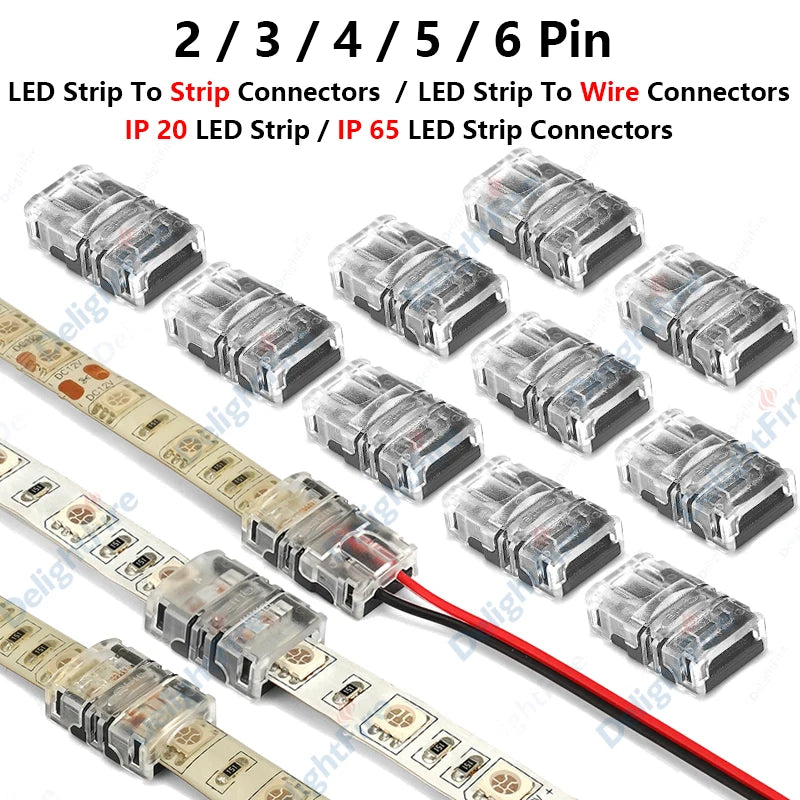

Solderless LED Connector 6 5 4 3 2 Pin LED Strip Connectors For RGB RGBW SMD 5050 WS2812B LED Strip Light Wire Connection

★ ★ ★ ★ ☆ 4.5 / 5 (170 Reviews)
$12.99
$12.99 $16.99
23% OFF Sold out

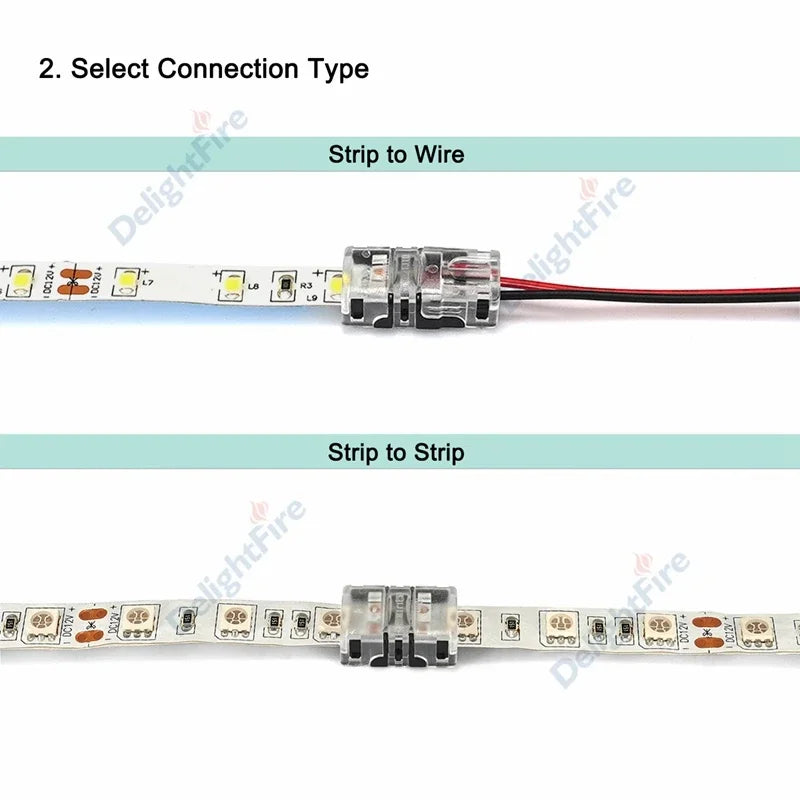

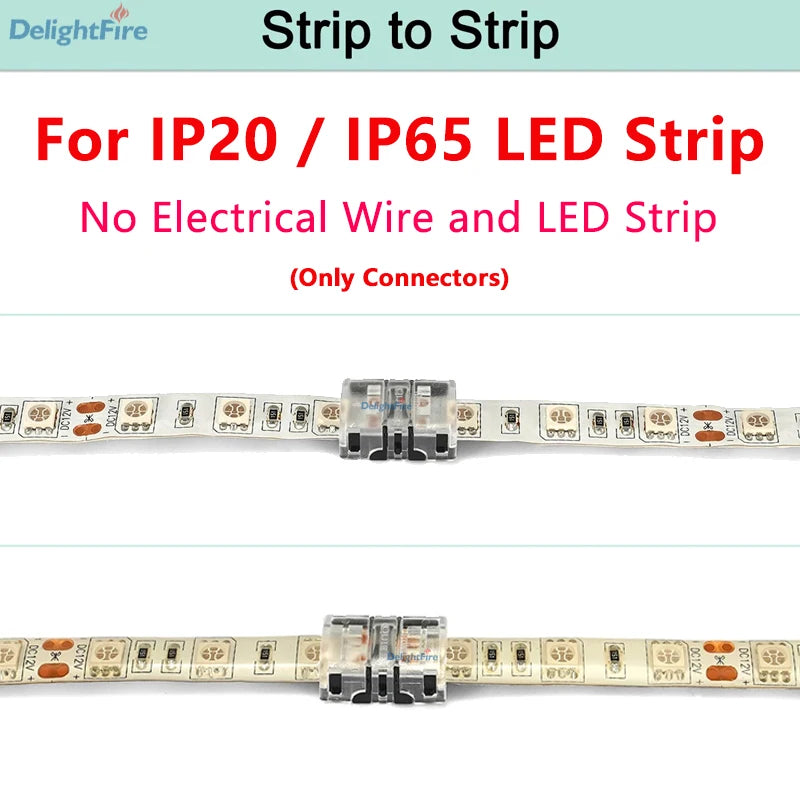

LED Strip to Strip
LED Strip to Strip

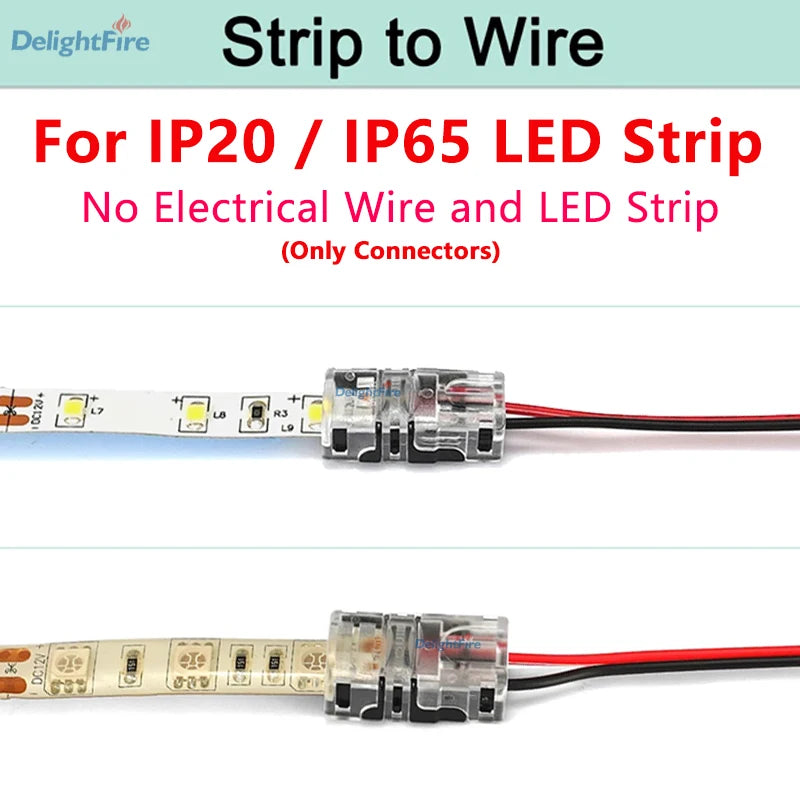

LED Strip to Wire
LED Strip to Wire

Solderless LED Connector 6 5 4 3 2 Pin LED Strip Connectors For RGB RGBW SMD 5050 WS2812B LED Strip Light Wire Connection

$12.99
$12.99 $16.99
23% OFF Sold out
Yazı Döngüsü by 211medya.com
🚀 Over 150 items sold in the last 3 days!!
🧡 Customer favorite! With an average rating of 4.8 stars!
🛒 In the carts of 205 people, buy before it’s gone!
👀 8.3K people viewed in the last 24 hours!
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay

 Free Standard Shipping Over 59.00 USD+

Free shipping on all items in your cart of US$59 and above! At BeautyFashion, we work diligently to deliver your orders to you as quickly and securely as possible. Once your order is delivered to the courier, your tracking number will be automatically sent to your email address. With this information, you can easily track the status of your shipment in real time via the "Order Tracking" page on our website. While you enjoy the excitement of your order, we deliver it safely to you. Free shipping on all items in your cart of US$59 and above! At BeautyFashion, we work diligently to deliver your orders to you as quickly and securely as possible. After your order is delivered to the courier, your tracking number will be automatically sent to your email address. With this information, you can easily track the status of your shipment in real time via the "Order Tracking" page on our website. While you enjoy the excitement of your order, we deliver it safely to you.

 Easy Returns within 30 days

-Items in the following categories cannot be exchanged or returned: Bikinis, swimsuits, lingerie, tights, hosiery, and accessories (excluding belts and bags), evening gowns, dresses, and corsets (our evening gowns are custom-made and therefore cannot be returned). We take the health and safety of our customers seriously, and intimate items cannot be resold after being opened or used.

🎁 Special End-of-Season Multi-Buy DISCOUNT!

  • Extra 10% OFF on orders over 200 USD
  • Extra 15% OFF on orders over 400 USD
  • Extra 20% OFF on orders over 600 USD
  • 24/7 Customer Service
  • Easy Return
  • Fast Shipping


All our products have been carefully selected and they are same as the picture which you see on our store. We already let the product color tend to the true as far as possible, however because of the monitor color error there more or less has a little bit of different. But definitely the product shape is the same as the picture.

Technical Data

IP20 or IP54/65 Silicon Waterproof

IP54/65 Epoxy/PU Waterproof

Electrical Data

Working Voltage

DC3~24V

Max Current

5A

Pin Data

Pin Quantity

2/3/4/5/6 Pins

Material

Copper

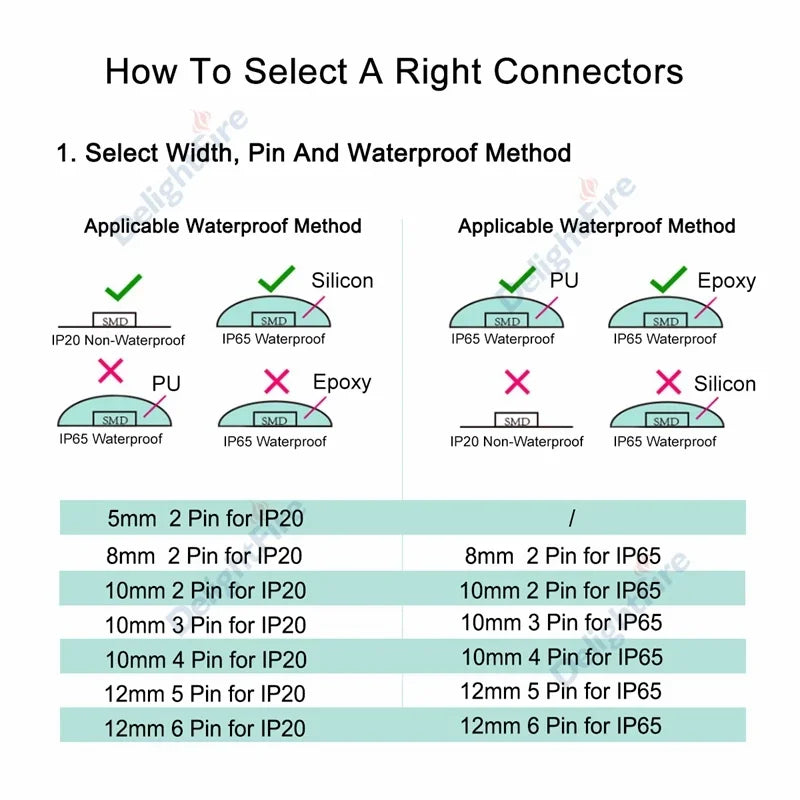

Workable Strip Data

Strip Light Color

Single Color / Dual Color / RGB / RGB+White / RGBW /
RGB+Yellow / RGBWW / RGB+Dual Color

IP Rating

IP20

IP65 / IP54

Waterproof Type

Non-waterproof

One Side Glue Coating

FPC Thickness

0.2~0.35mm

LED Strip Height

/

>22 mm Include Glue

LED Strip Width

5/8/10/12mm

LED QTY / Meter

<=96LEDs(4/5/6pin), <=120LEDs(2/3pin), <=300LEDs(High Density)

Workable Wire Data
(for strip to wire)

Wire Gauge

22~18AWG(2pin), 22~20AWG(3/4/5/6pin)

Cross Section

0.34~0.72mm²(2pin), 0.34~0.5mm²(3/4/5/6pin)

Wire O.D.

Φ1.5mm~Φ2.1mm

Wire Type

Strand & Solid

Housing Data

Flame Retardant

UL94v~0

Material

PC

Heat Resistance

105℃

Ambient Data

Temperature

-20~50℃

Environment

Indoor

   Note:
1. For IP65/IP54 Strip Light, the IP rating will not be maintained after connection.
2. Due to silicon coating is softer, if IP65 type can not work well, please try connecting it with IP20 type.

Item Features:

  • 100% brand new LED Strip Connectors

  • Strip to wires connection box

  • Easy to install, no soldering needed when use to re-connect LED strip and wires

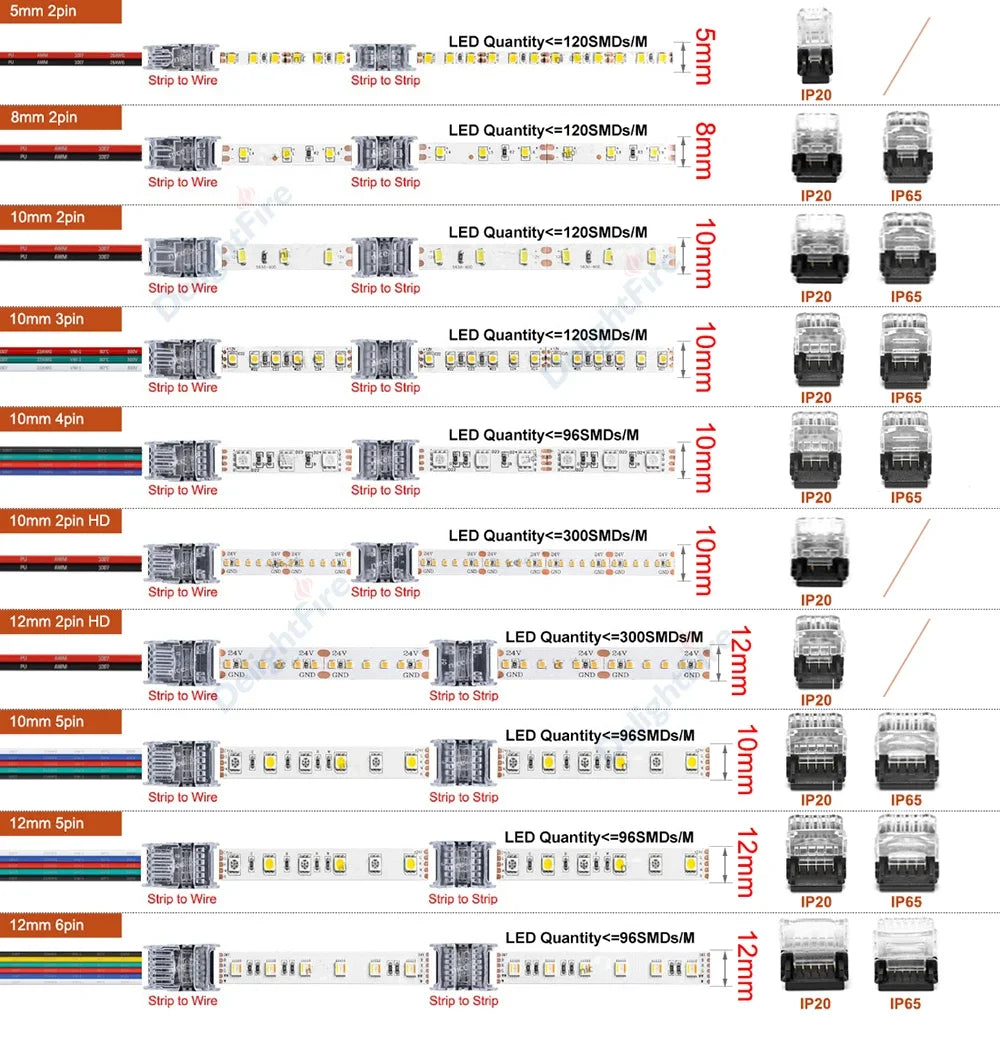

  • Connector Type: 2 pin 5/8/10mm| 3 pin 10mm | 4 pin 10mm | 5 pin 10/12mm | 6pin 12mm

  • Shell material: fireproof PC

  • Contact material: Copper

  • Rated voltage(V): 0-36V

  • Rated current(A): 5A

  • Fitted cable gauge(mm²): 0.35mm²-0.75mm²

  • Fitted cable gauge(AWG): 22AWG/20AWG/18AWG

  • Fitted cable OD(mm²): Φ1.5mm-2.1mm

  • Flame class: UL-94-V0

  • Working temperature: -20℃ - 60℃

  • Waterproof rate: IP20/IP65

Package Includes:

  • 5 x  LED Strip Connectors
