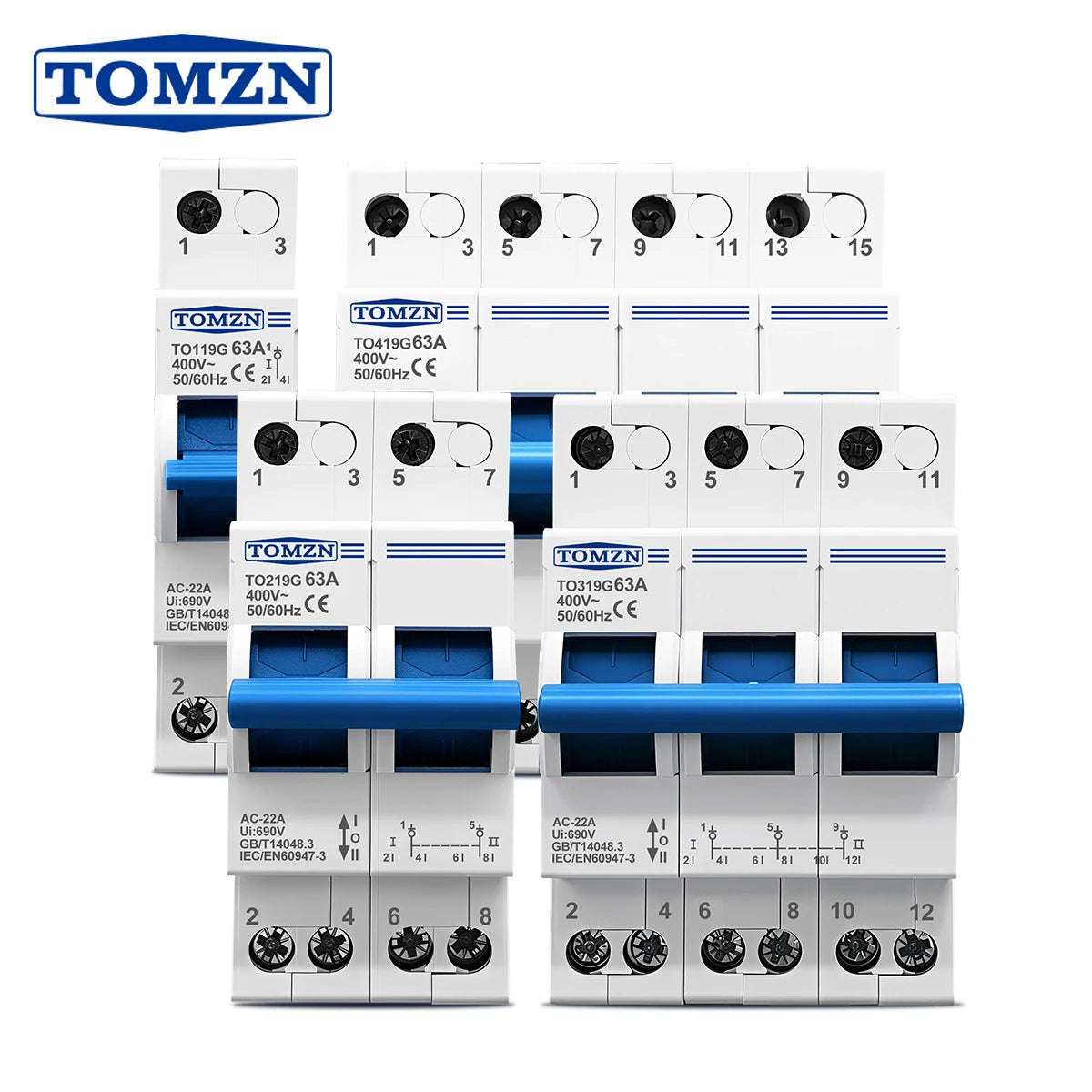

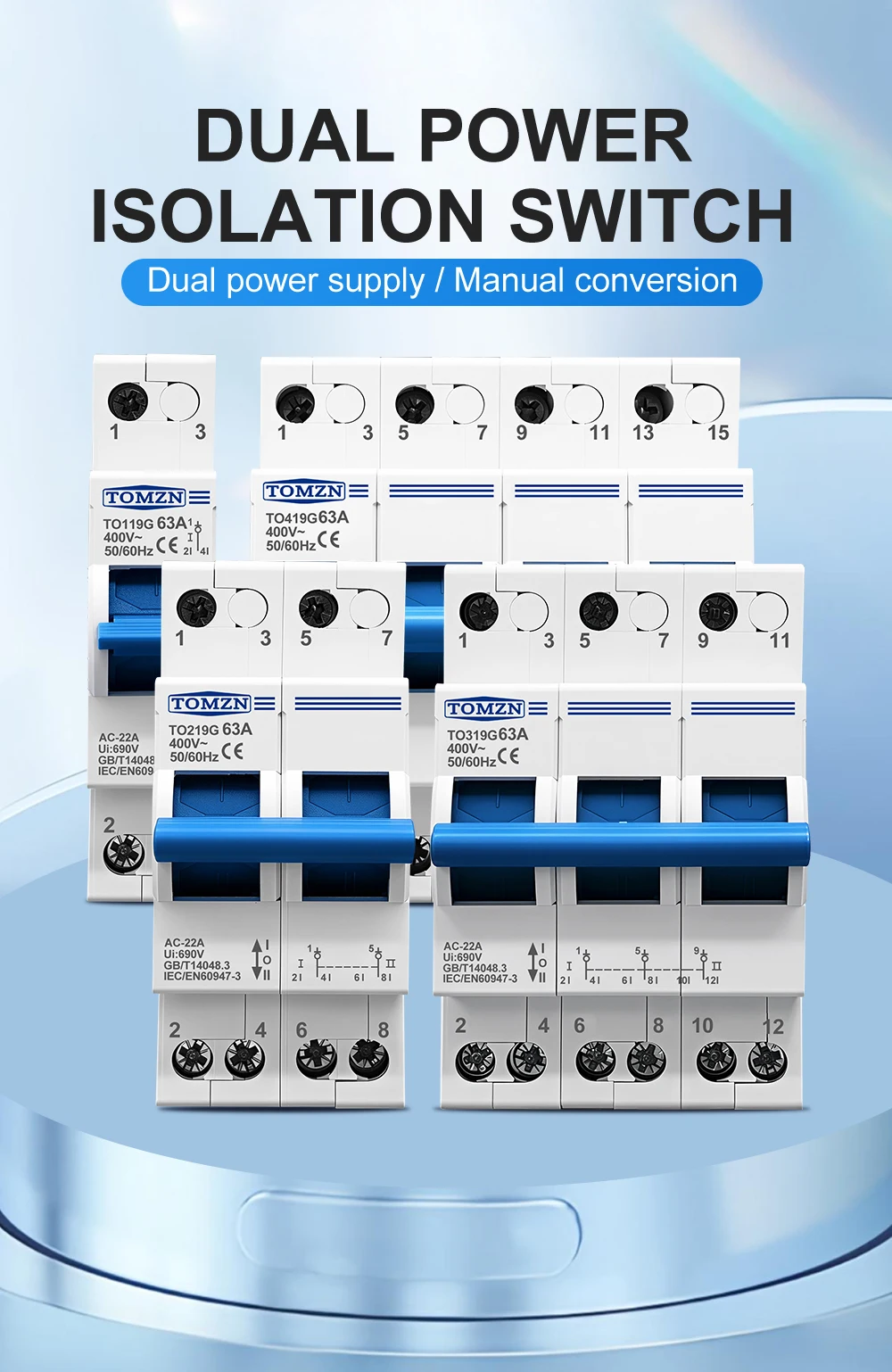

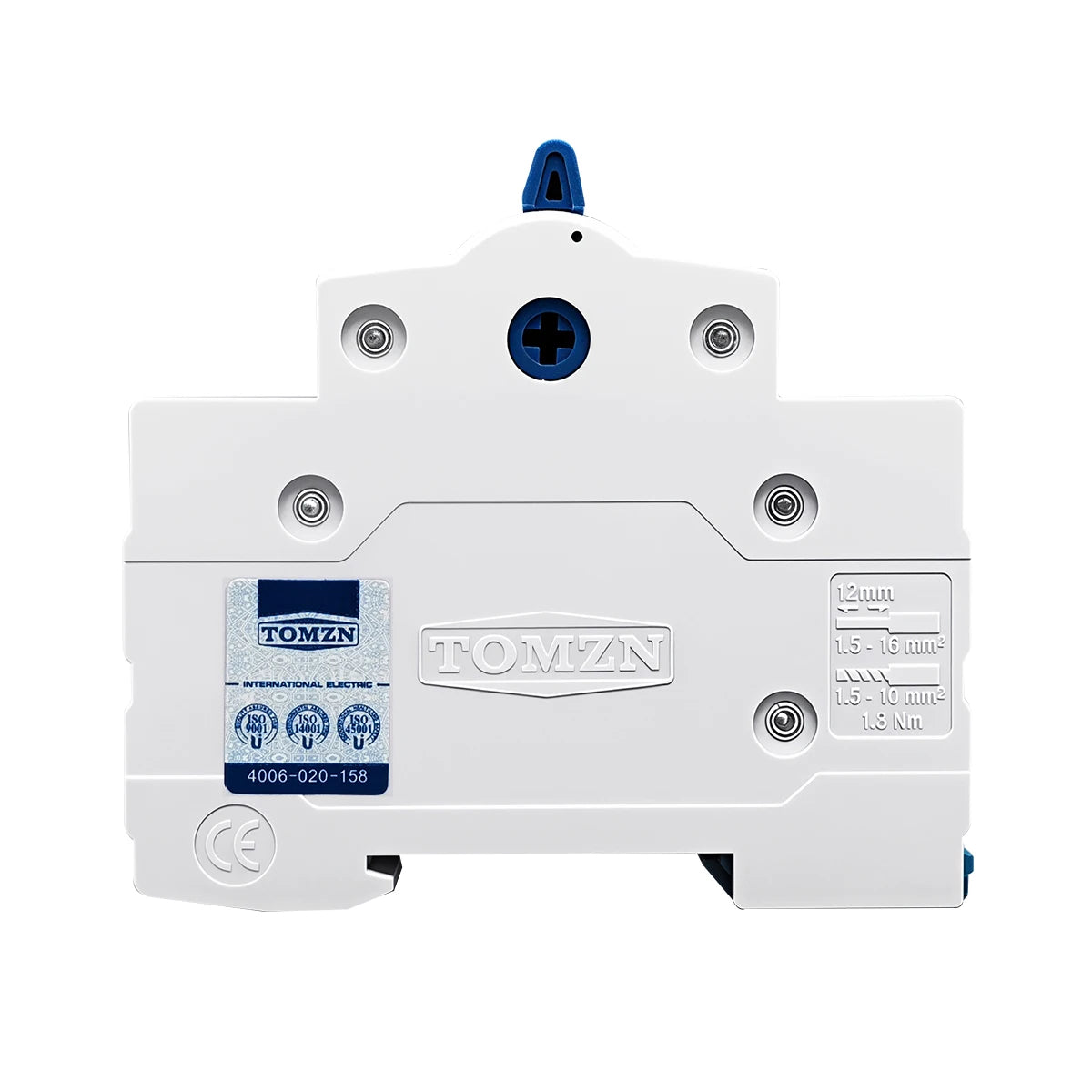

TOMZN TO219G 1P 2P 3P 4P 40A 63A MTS Dual Power Manual Transfer Isolating Switch Interlock Circuit Breaker Blue Generator PV

Model:

TO119G 1P 230V AC 40A/63A

TO219G 2P 230V AC 40A/63A

TO319G 3P 230V AC 40A/63A

TO419G 4P 230V AC 40A/63A

General

A Manual Transfer Switch (MTS) is a critical electrical device designed to provide reliable power supply for essential circuits. It serves as a secure bridge between two independent power sources, typically the utility power (main source) and a generator (backup source).

1. Safe Power Source Transfer

The primary function is to manually shift the electrical load from a failed or de-energized main power source to a live backup source. This ensures that critical systems and equipment can continue operating without prolonged interruption.
2. Complete Electrical Interlocking

A key safety mechanism ensures that both power sources can never be connected simultaneously. This prevents back-feeding, which could cause severe short circuits, damage equipment, and pose a serious hazard to utility workers.
3. Isolation and Operator Control

It features a clear "OFF" or "Open" position, allowing for complete physical isolation of the load from both sources. This enables safe maintenance and servicing.
Operation is direct and intentional, with clearly marked positions (e.g., "Line 1," "Line 2," "Off"). This manual, non-automated process gives operators full control and eliminates the risk of unintended automatic switching.

Basic Function

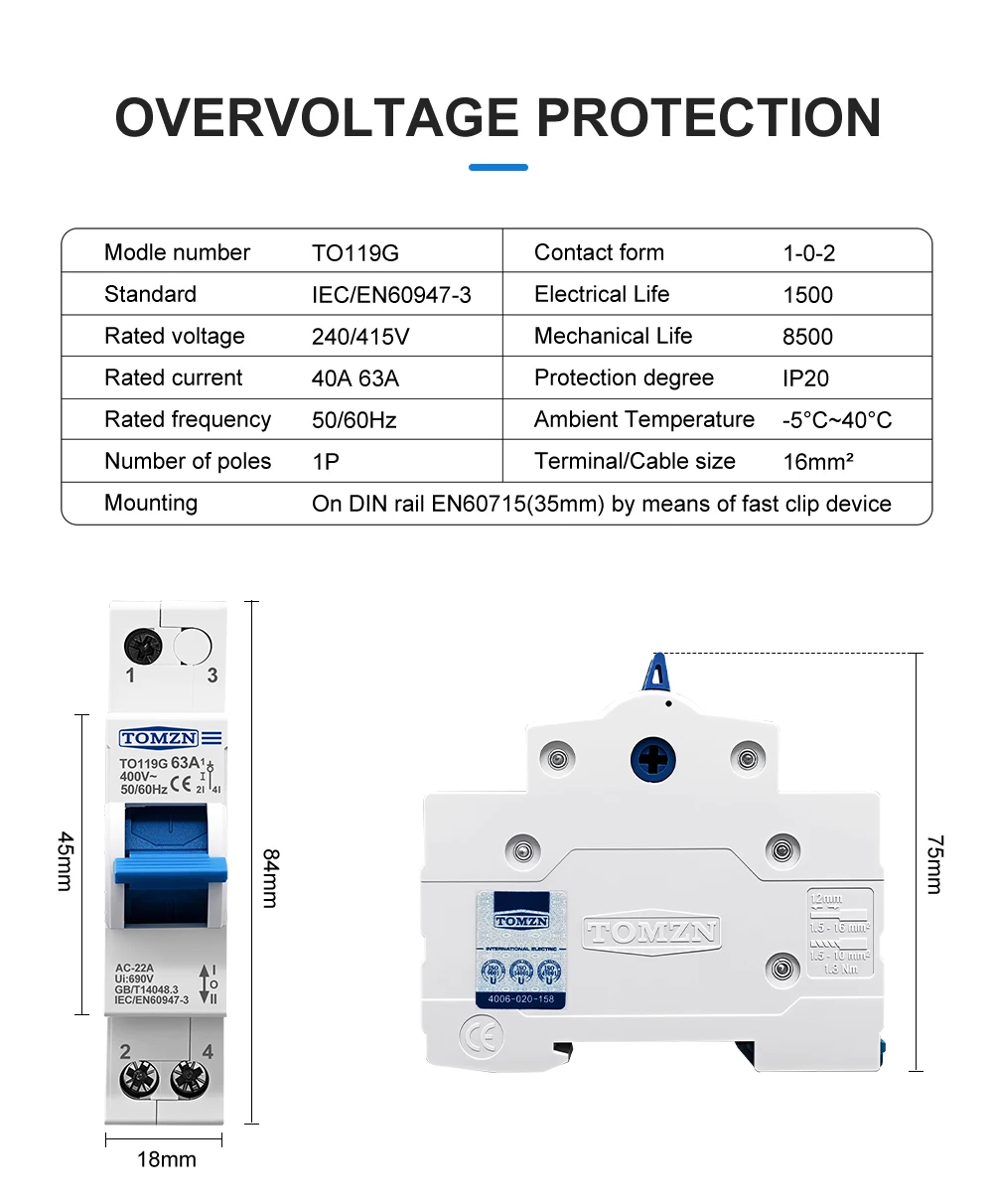

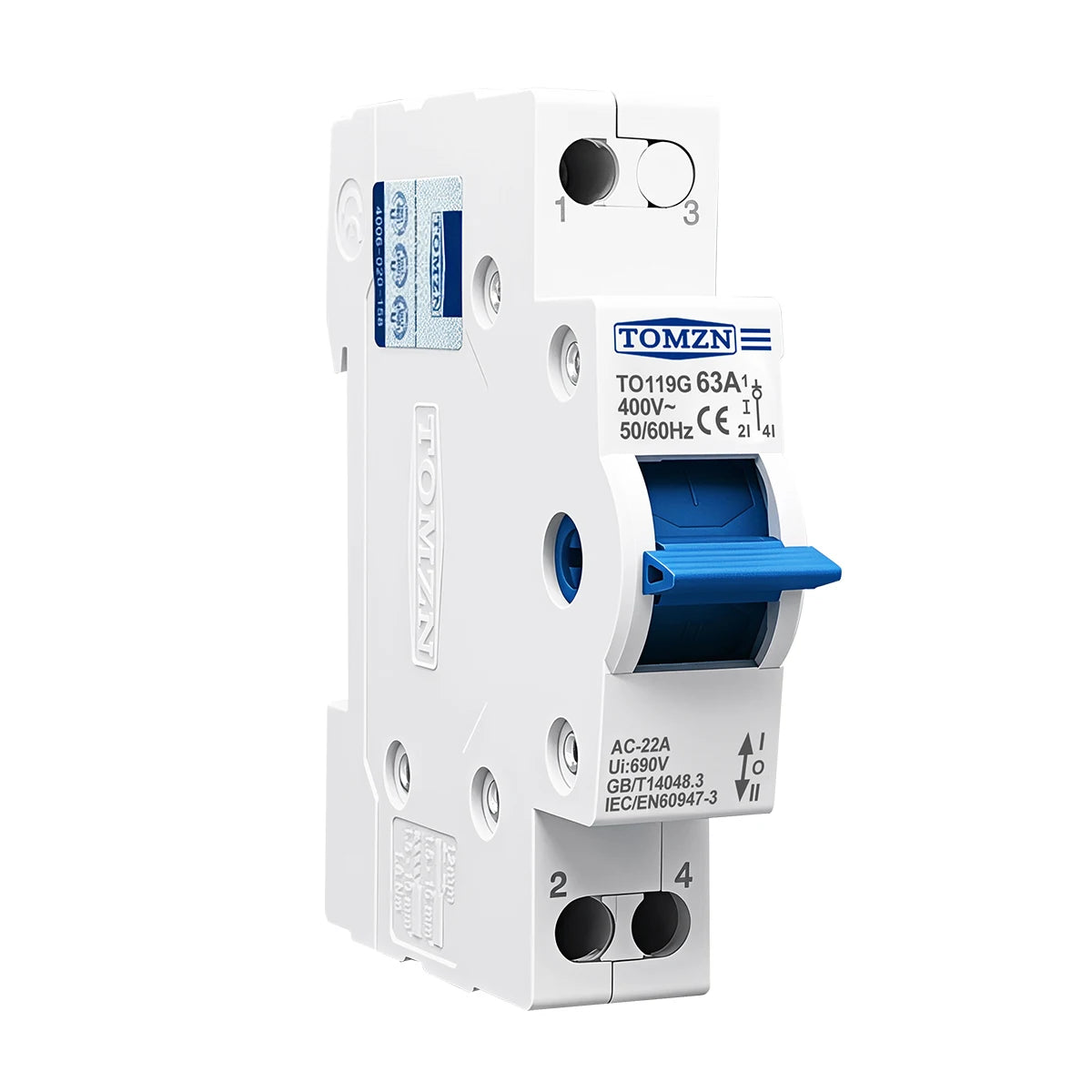

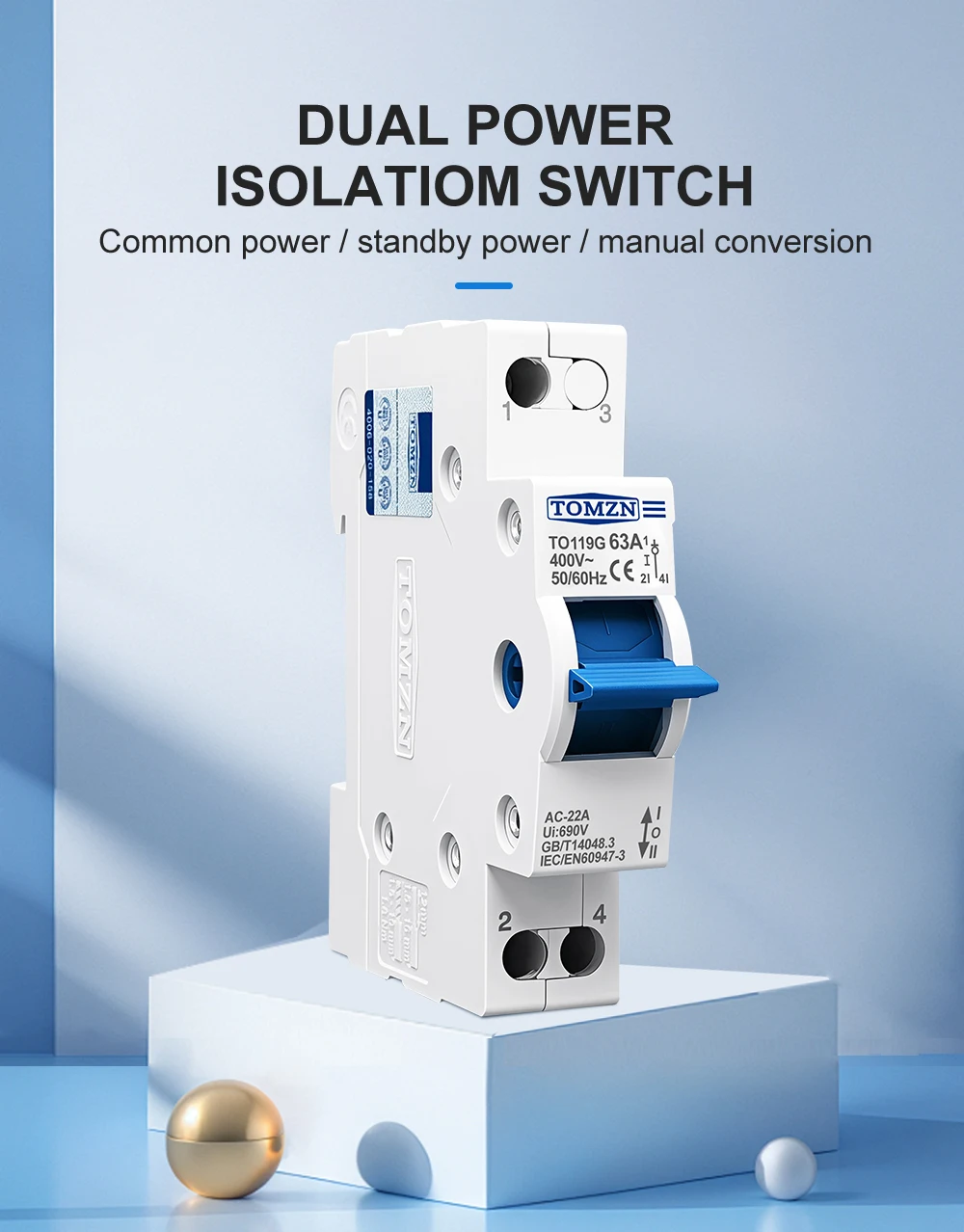

TO119G 1P 400V AC

1P Manual Transfer Switch(MTS)

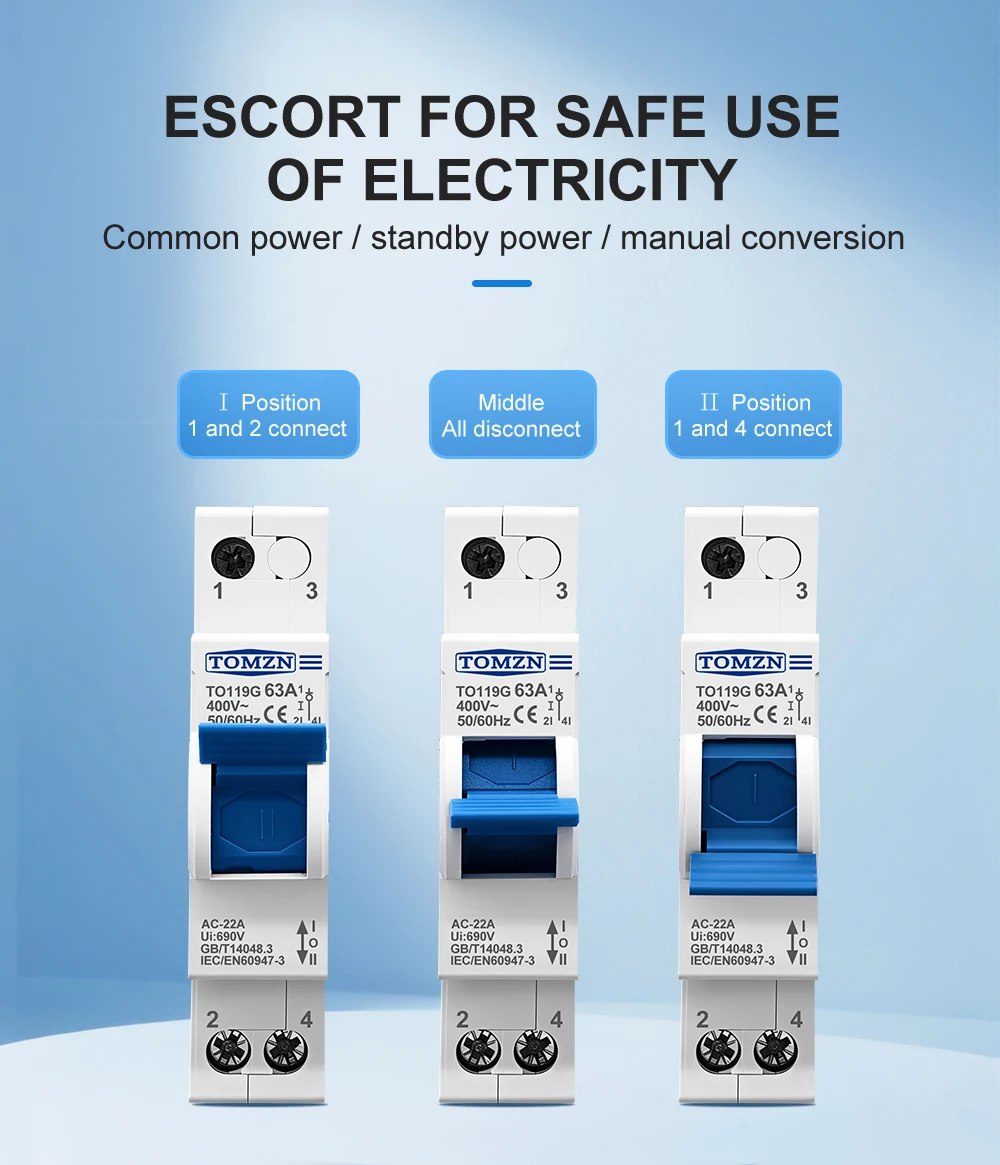

1.When the handle on the I position: 1 and 2 are connected

2.When the handle on the II position: 1 and 4 are connected

3.When the handle is in the middle position: both groups are disconnected.

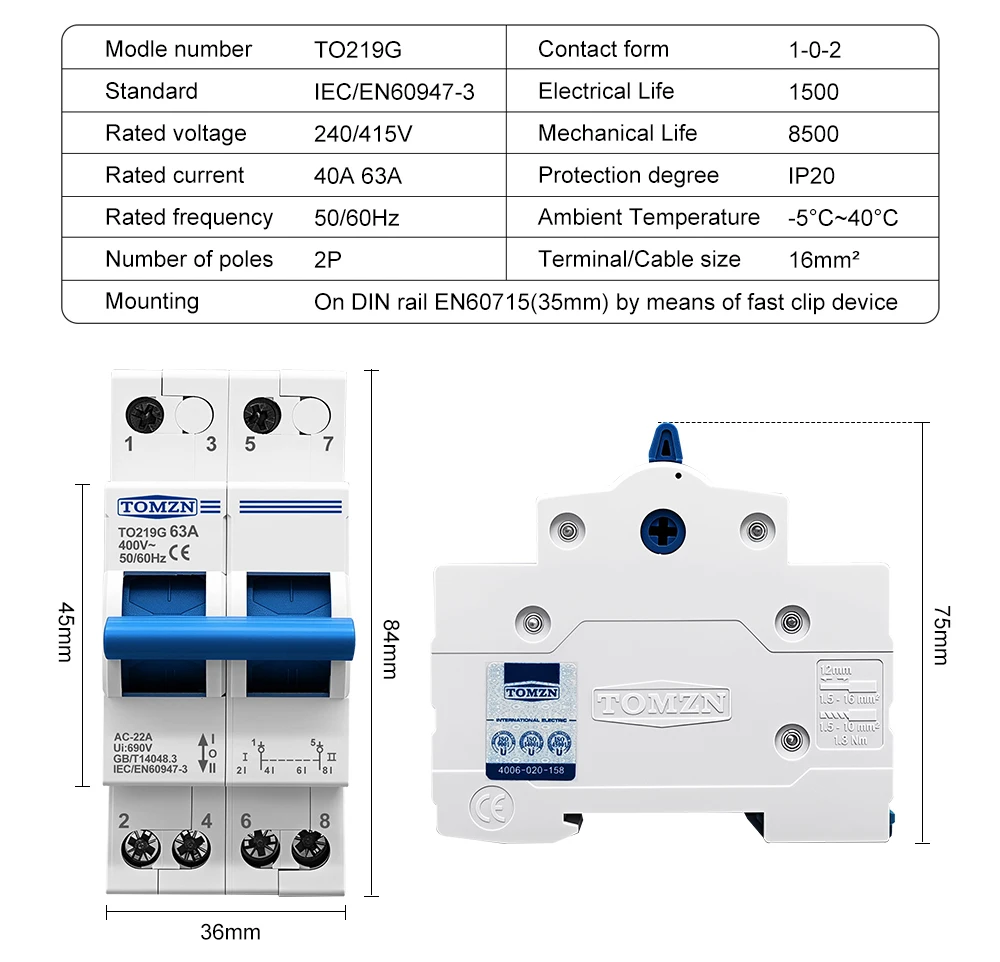

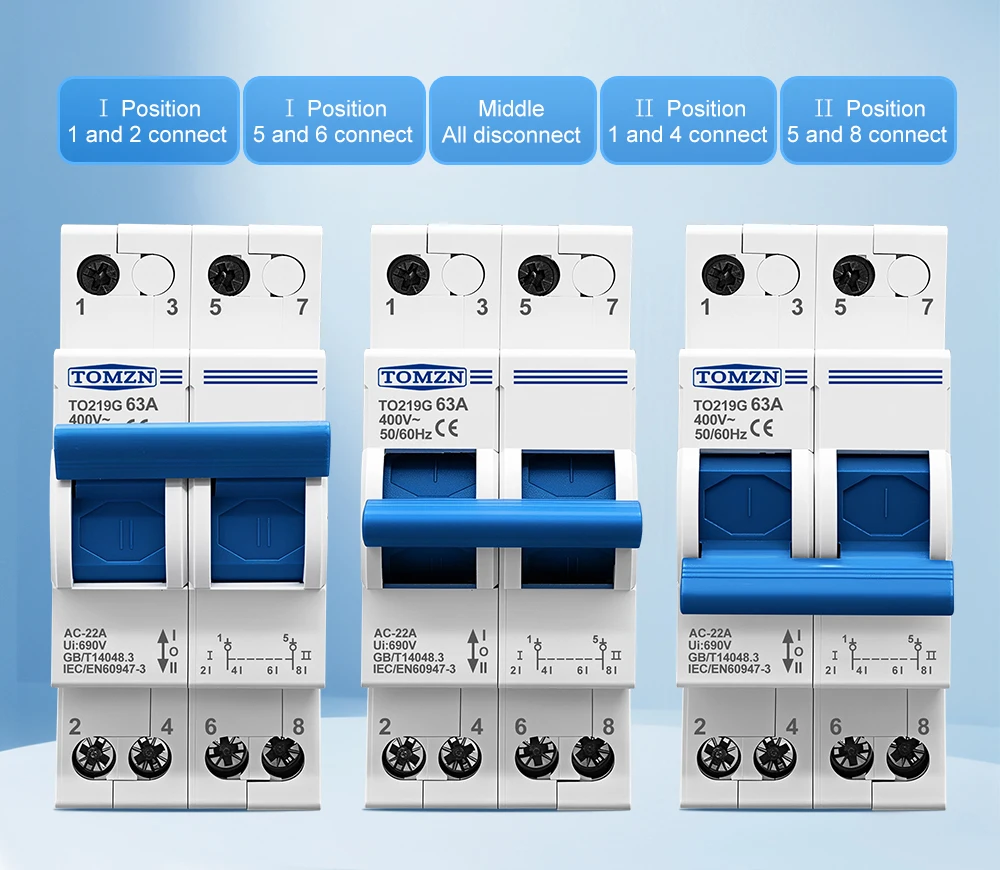

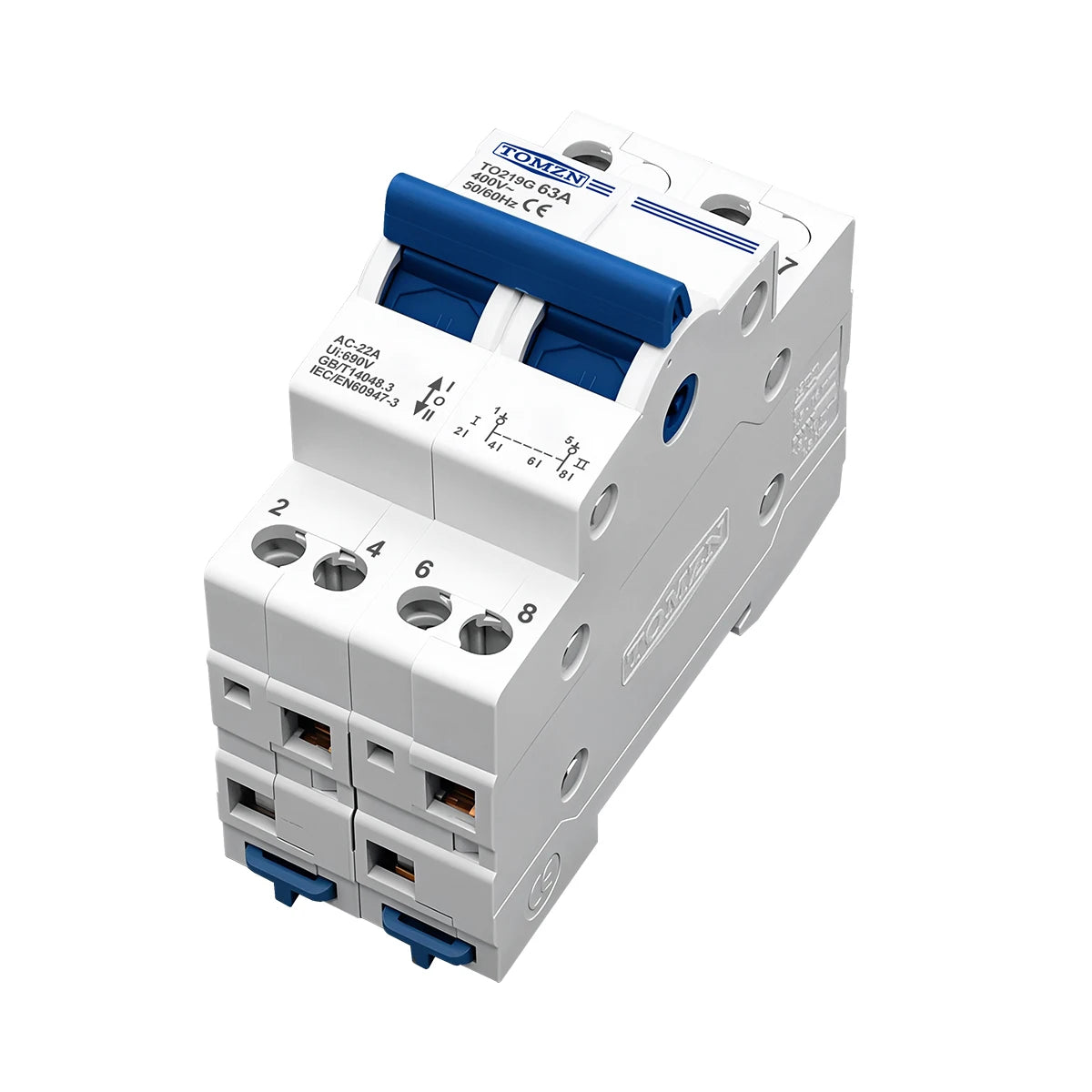

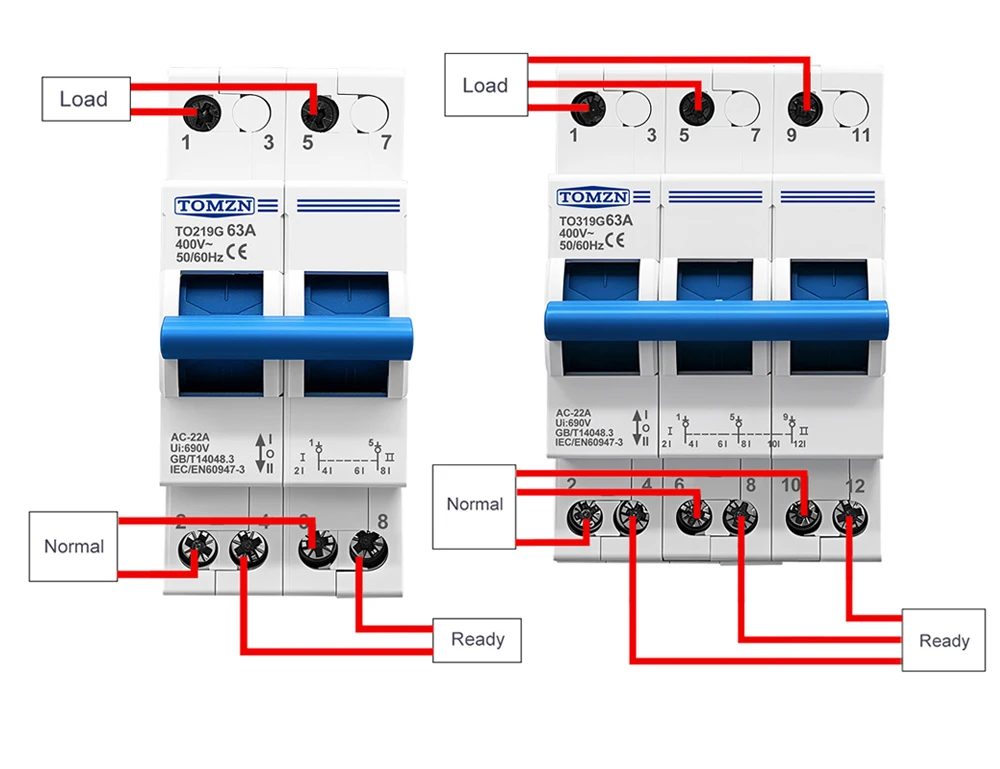

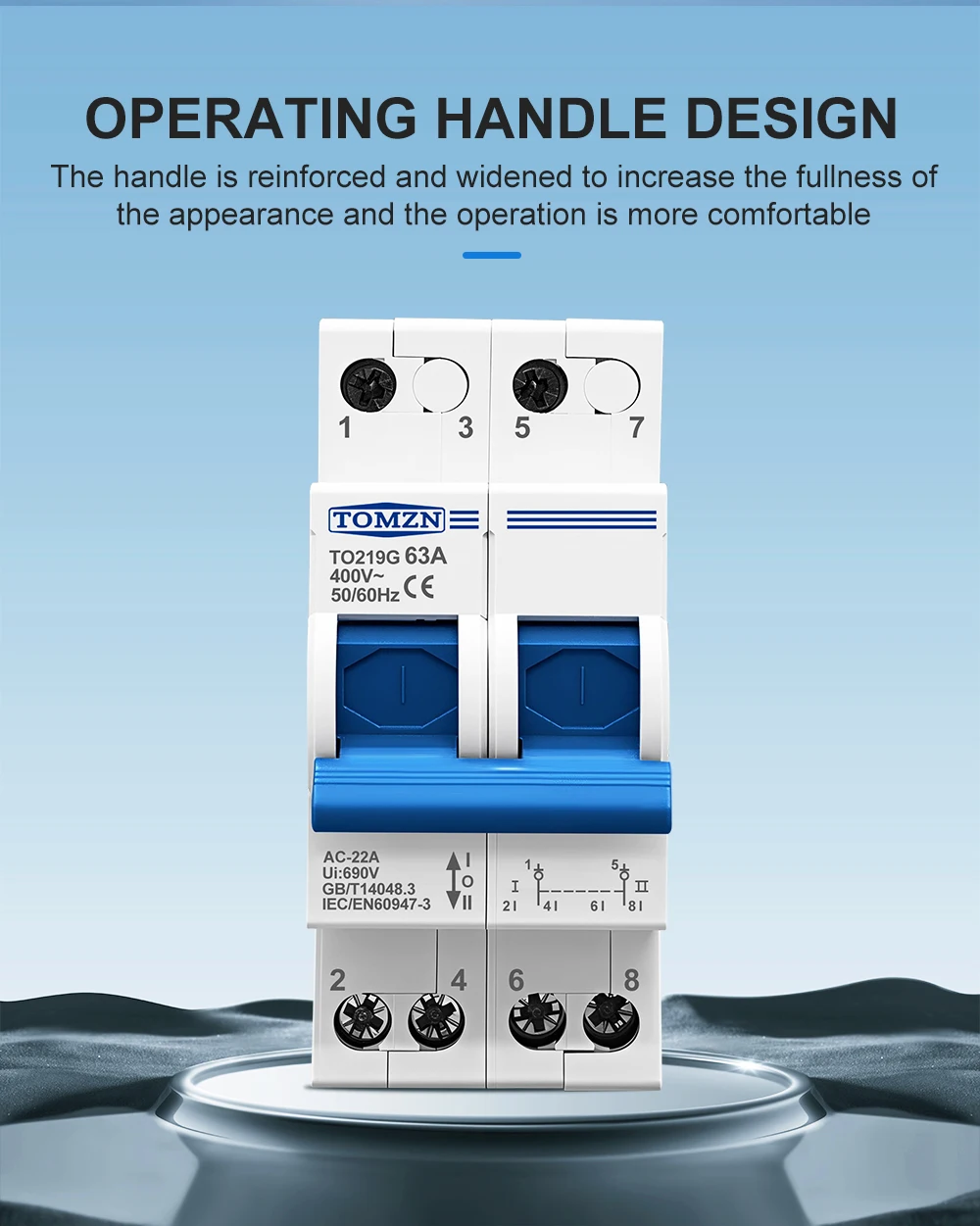

TO219G 2P 400V AC

2P Manual Transfer Switch(MTS)

1.When the handle on the I position:

1 and 2 are connected

5 and 6 are connected.

2.When the handle on the II position:

1 and 4 are connected

5 and 8 are connected.

3.When the handle is in the middle position: both groups are disconnected.

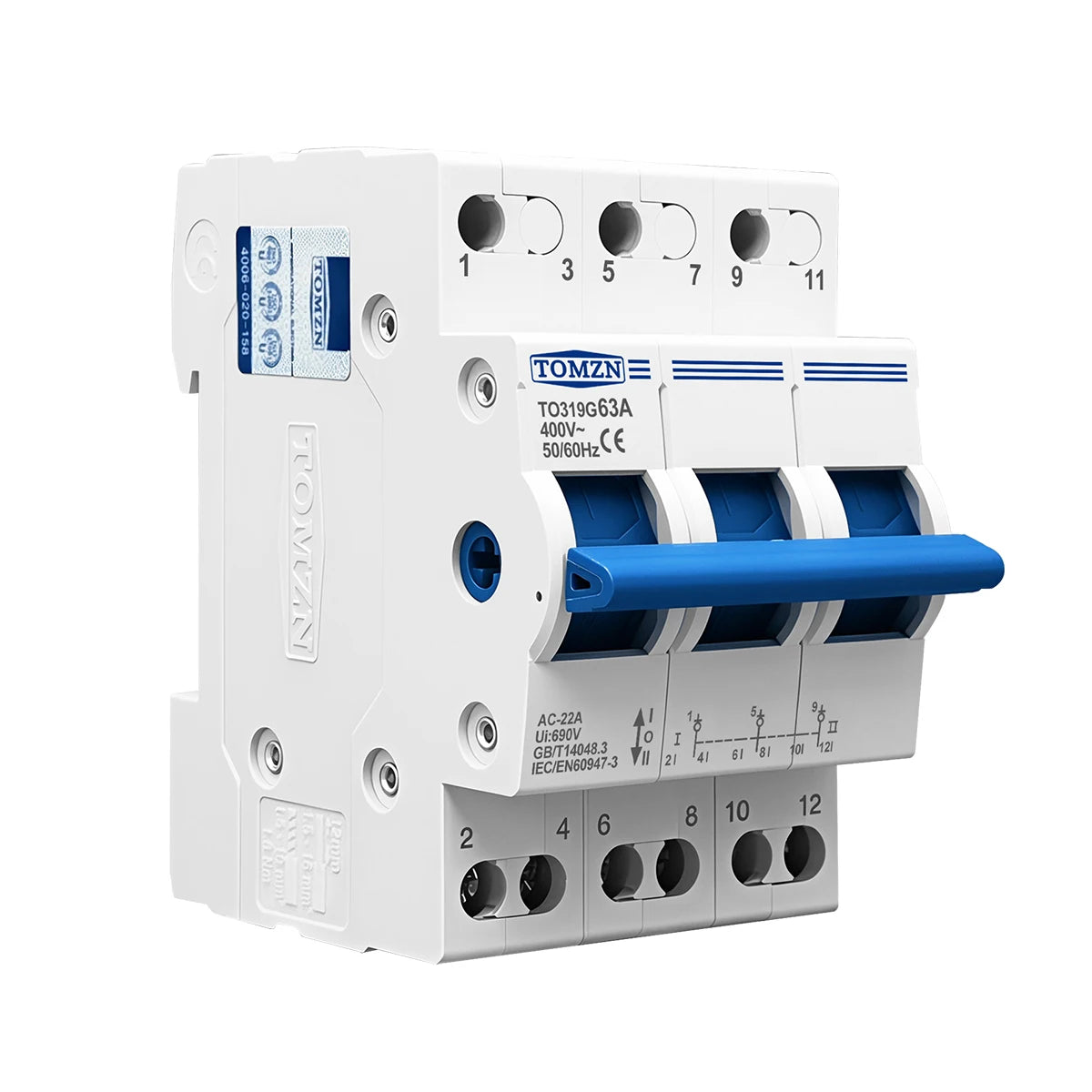

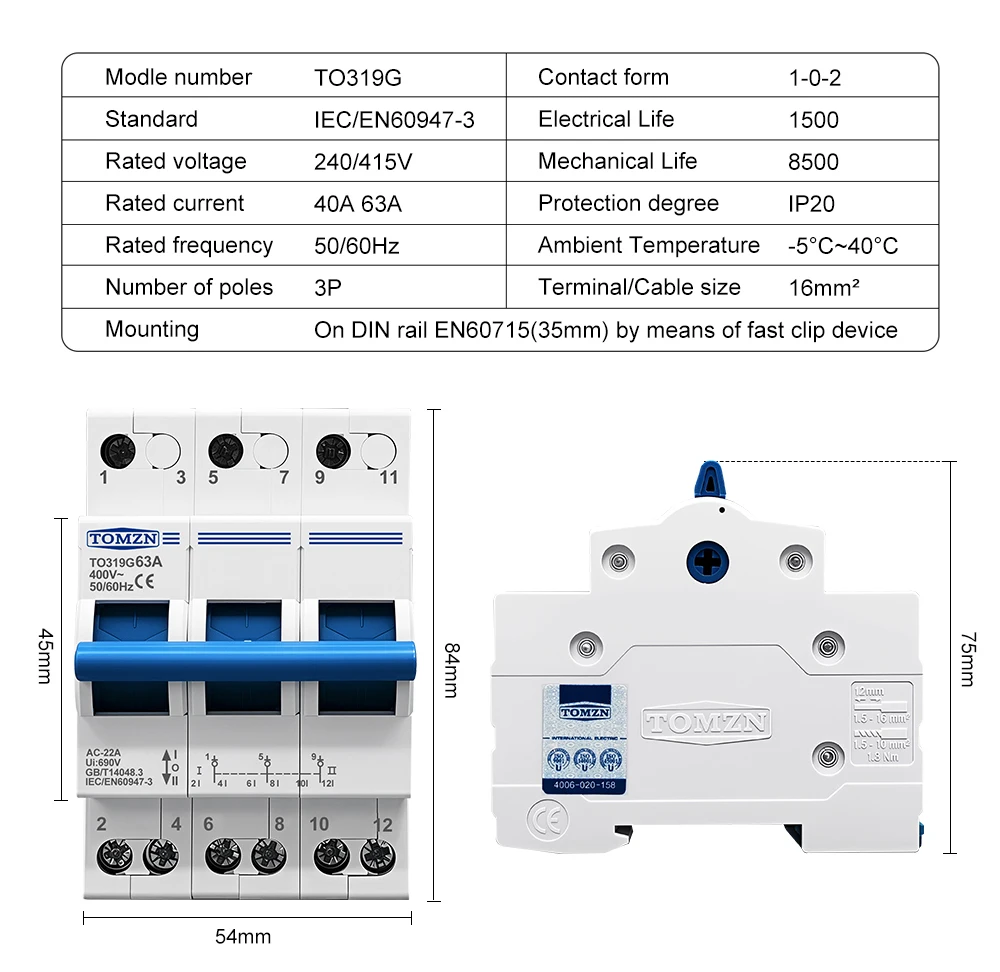

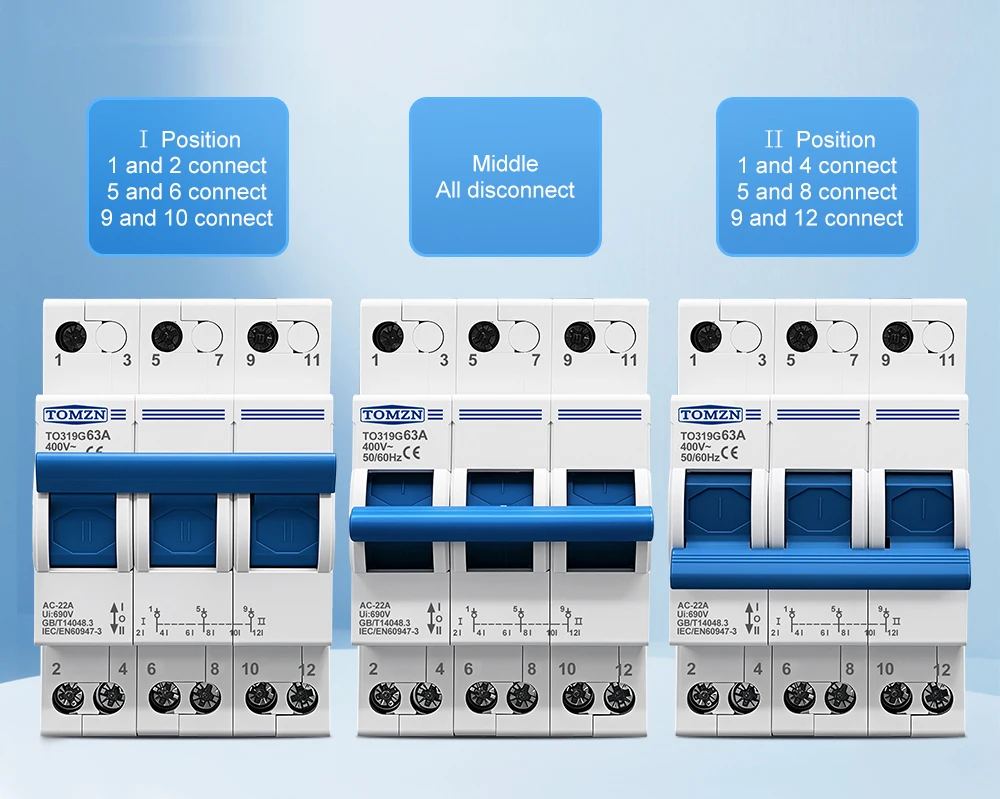

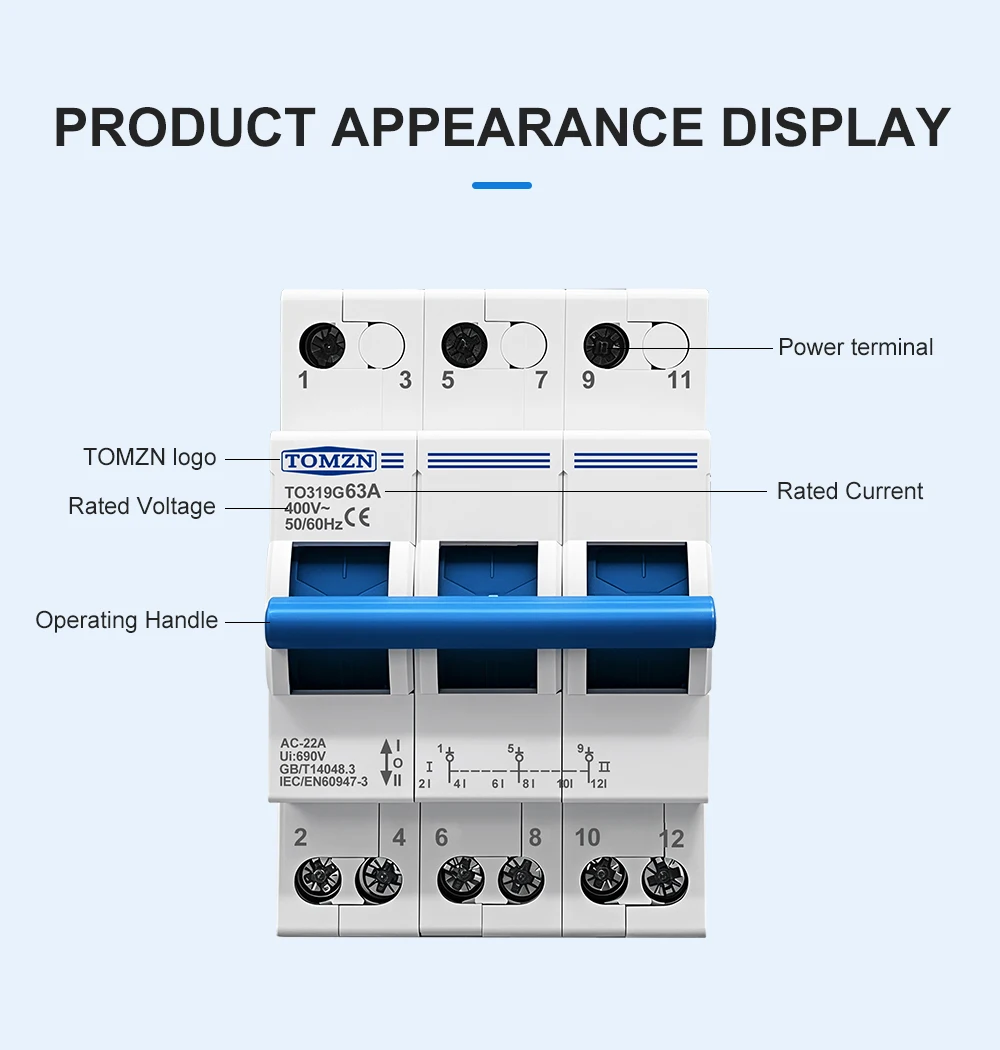

TO319G 3P 400V AC

3P Manual Transfer Switch(MTS)

1.When the handle on the I position:

1 and 2 are connected

5 and 6 are connected.

9 and 10 are connected

2.When the handle on the II position:

1 and 4 are connected

5 and 8 are connected.

9 and 12 are connected

3.When the handle is in the middle position: both groups are disconnected.

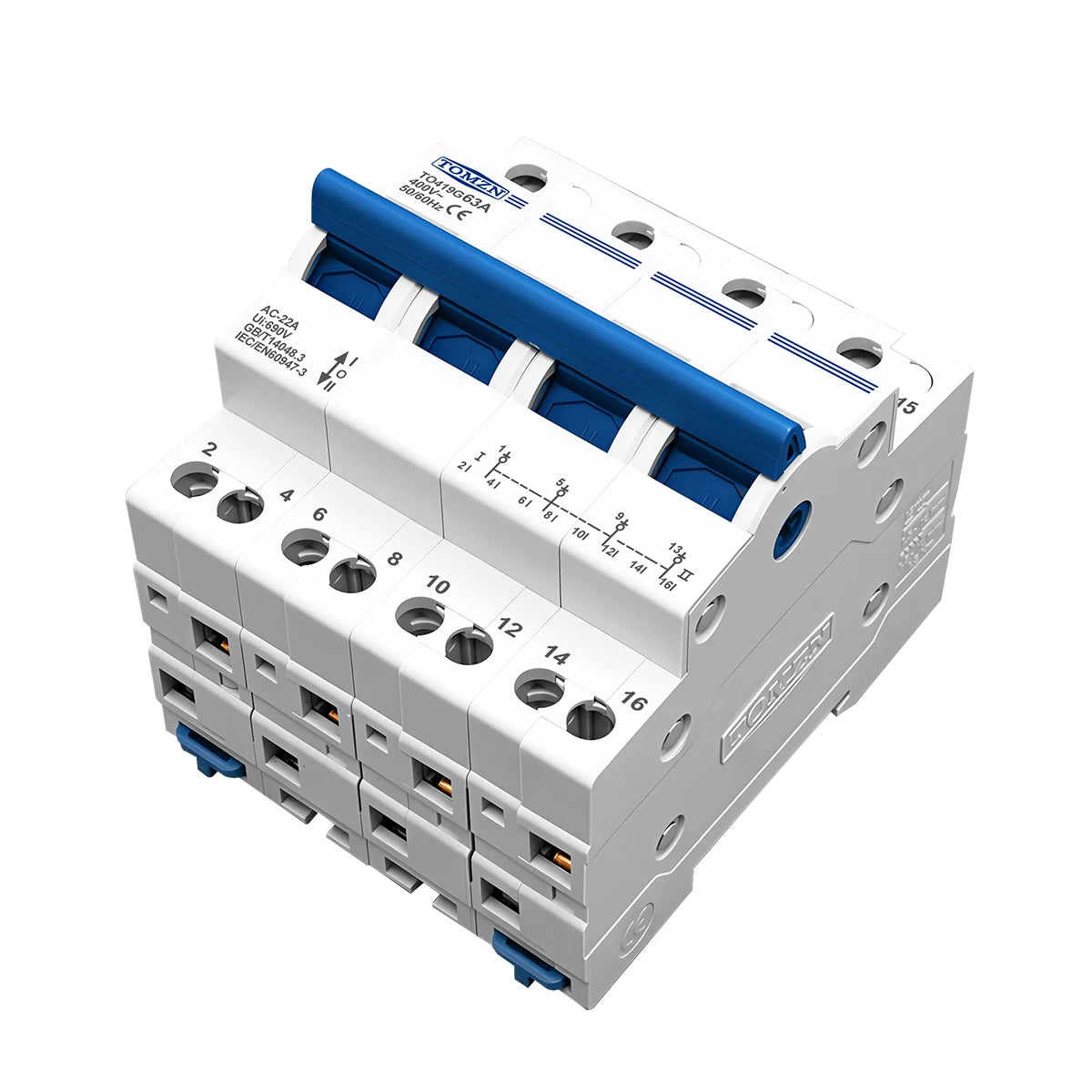

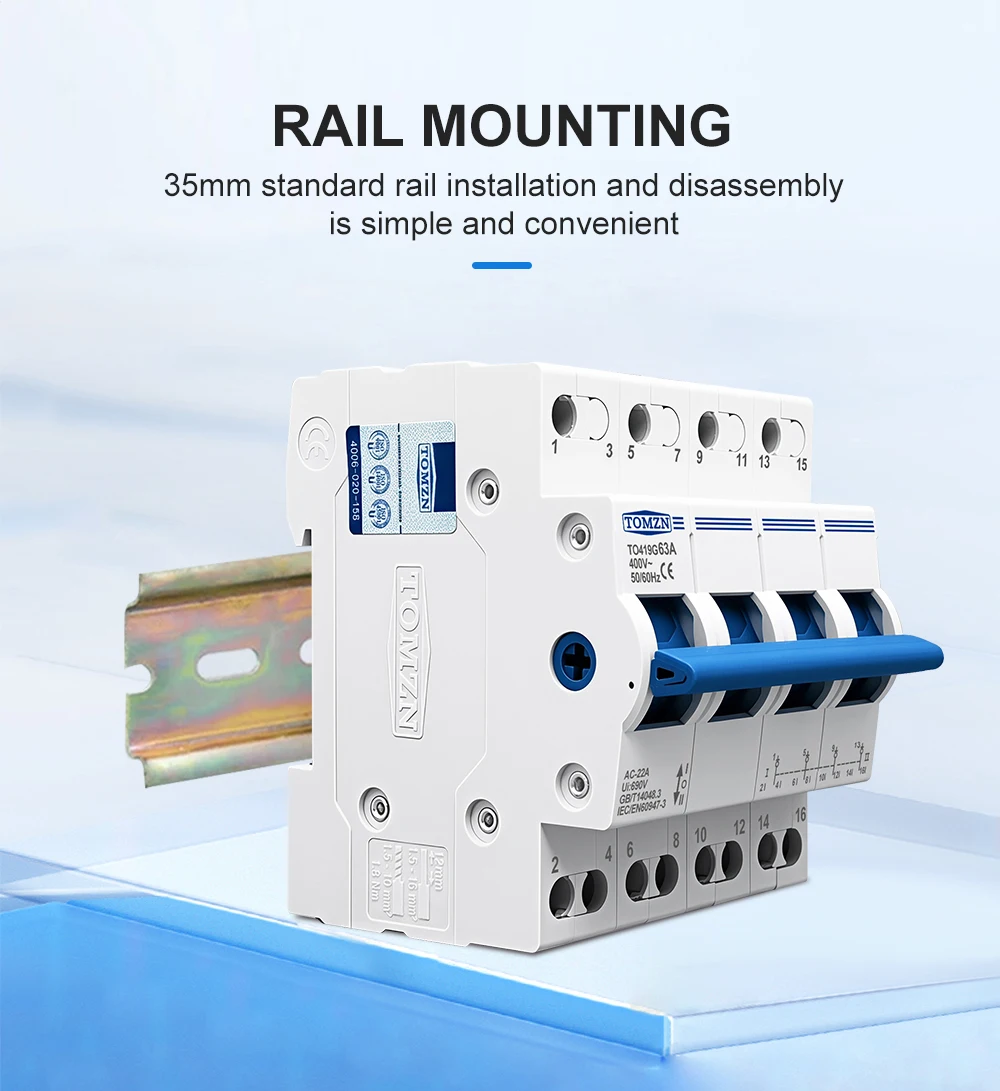

TO419G 4P 400V AC

4P Manual Transfer Switch(MTS)

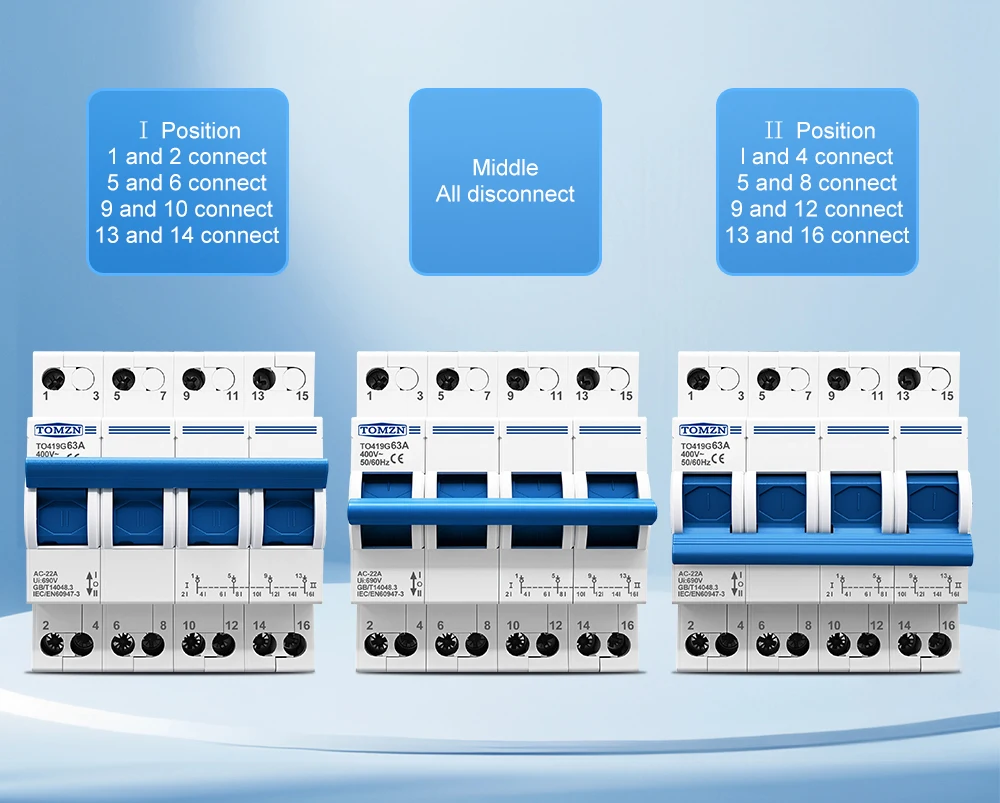

1.When the handle on the I position:

1 and 2 are connected

5 and 6 are connected

9 and 10 are connected

13 and 14 are connected.

2.When the handle on the II position:

1 and 4 are connected

5 and 8 are connected

9 and 12 are connected

13 and 16 are connected.

3.When the handle is in the middle position: both groups are disconnected.

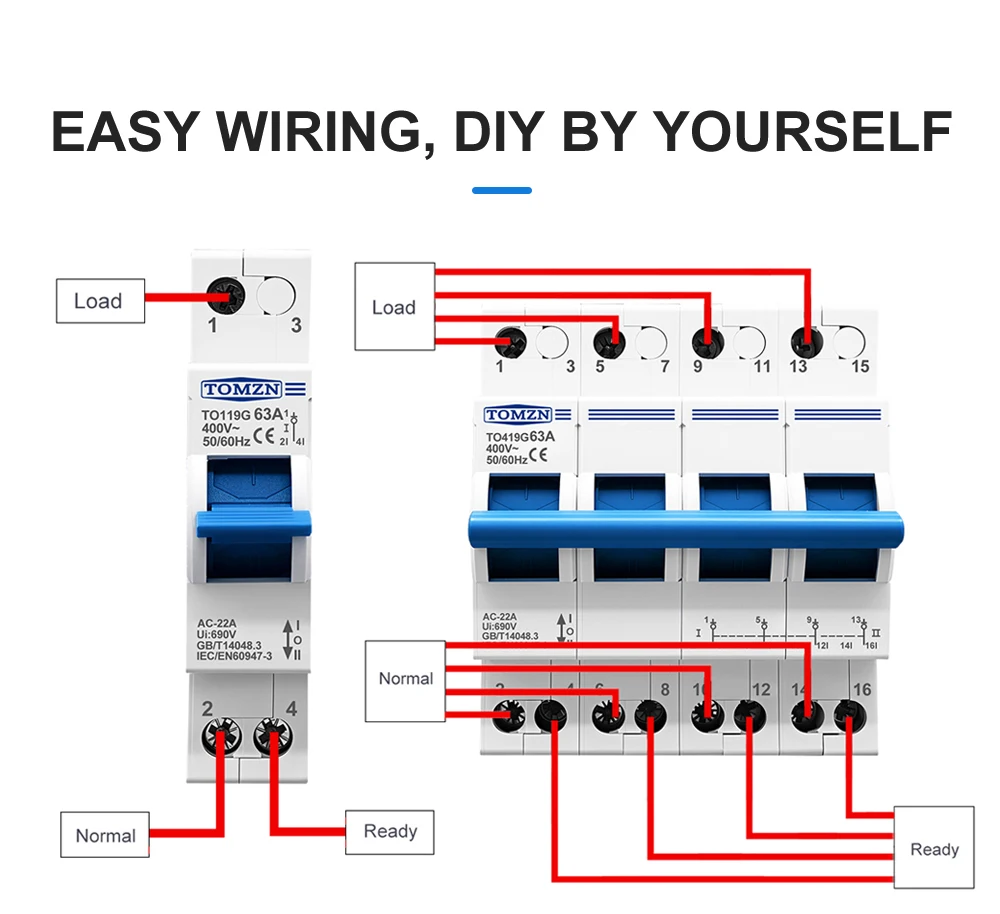

The position of the incoming and outgoing wires can be adjusted according to actual needs (the upper and lower out are not necessarily required, when used for dual power switching, the lower in and upper out must be used.)
